4-2
CHAS

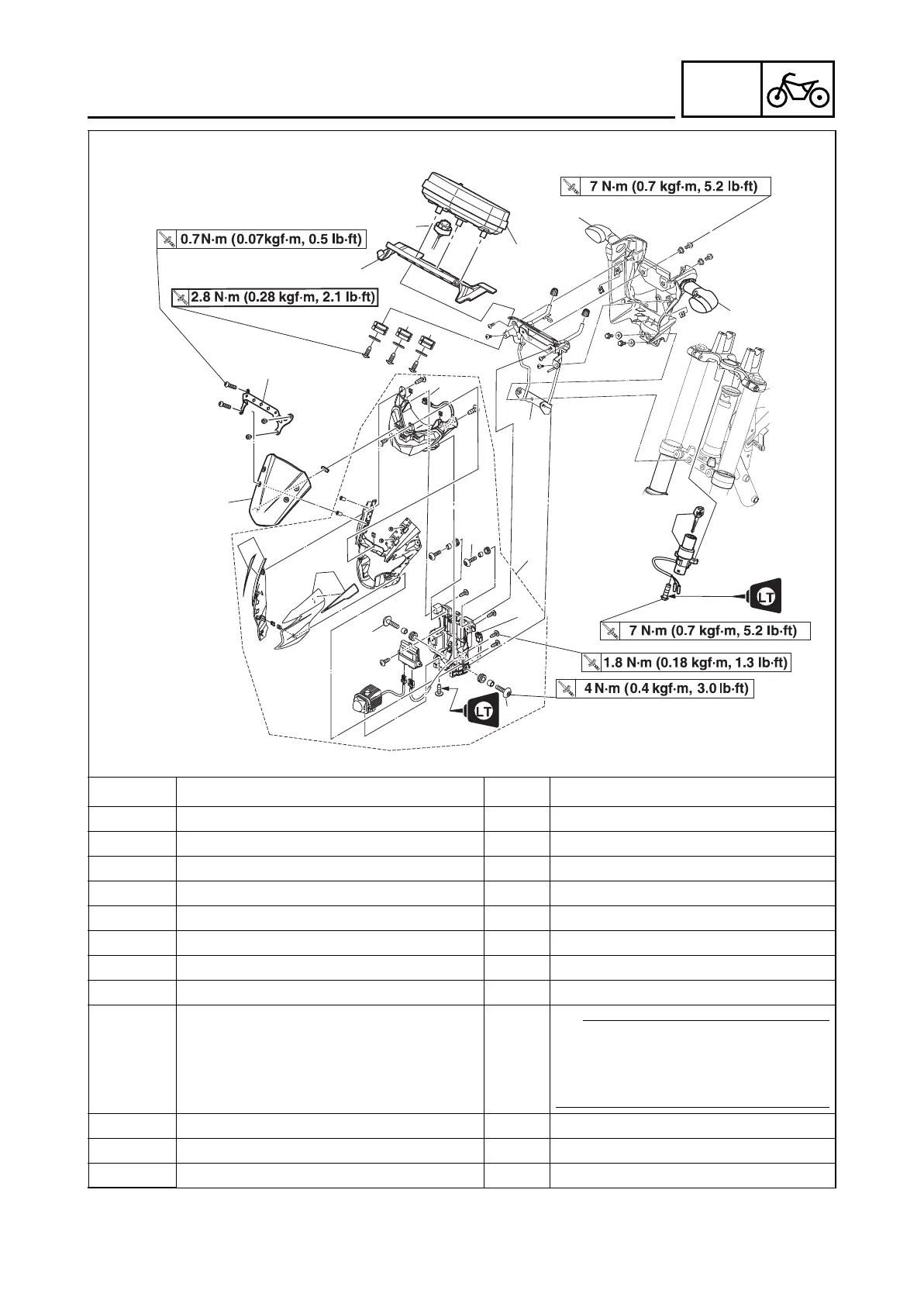

Removing the headlight assembly / meter assembly / auxiliary light assembly
Order Job/Parts to remove Q’ty Remarks
1
Licence plate stay 1
2
Windshield 1
3
Headlight assembly bolt (upper) 2
4
Headlight coupler 1 Disconnect.
5
Auxiliary light coupler 1 Disconnect.
6
Headlight assembly bolt (lower) 2
7
Head light assembly 1
8
Meter coupler 1 Disconnect.
9
Meter assembly 1
TIP
• Disconnect wire harness holders from
guide stay.
• Disconnect all leads couplers and con-
nectors (Refer cable routing).
10
Meter pad 1
11
Guide stay 1
12
Turn signal light (LH/RH) 1/1
12
12
9
8
5
10
11
7
6
6
3
4
2
1
GENERAL CHASSIS
