4-3
GENERAL CHASSIS

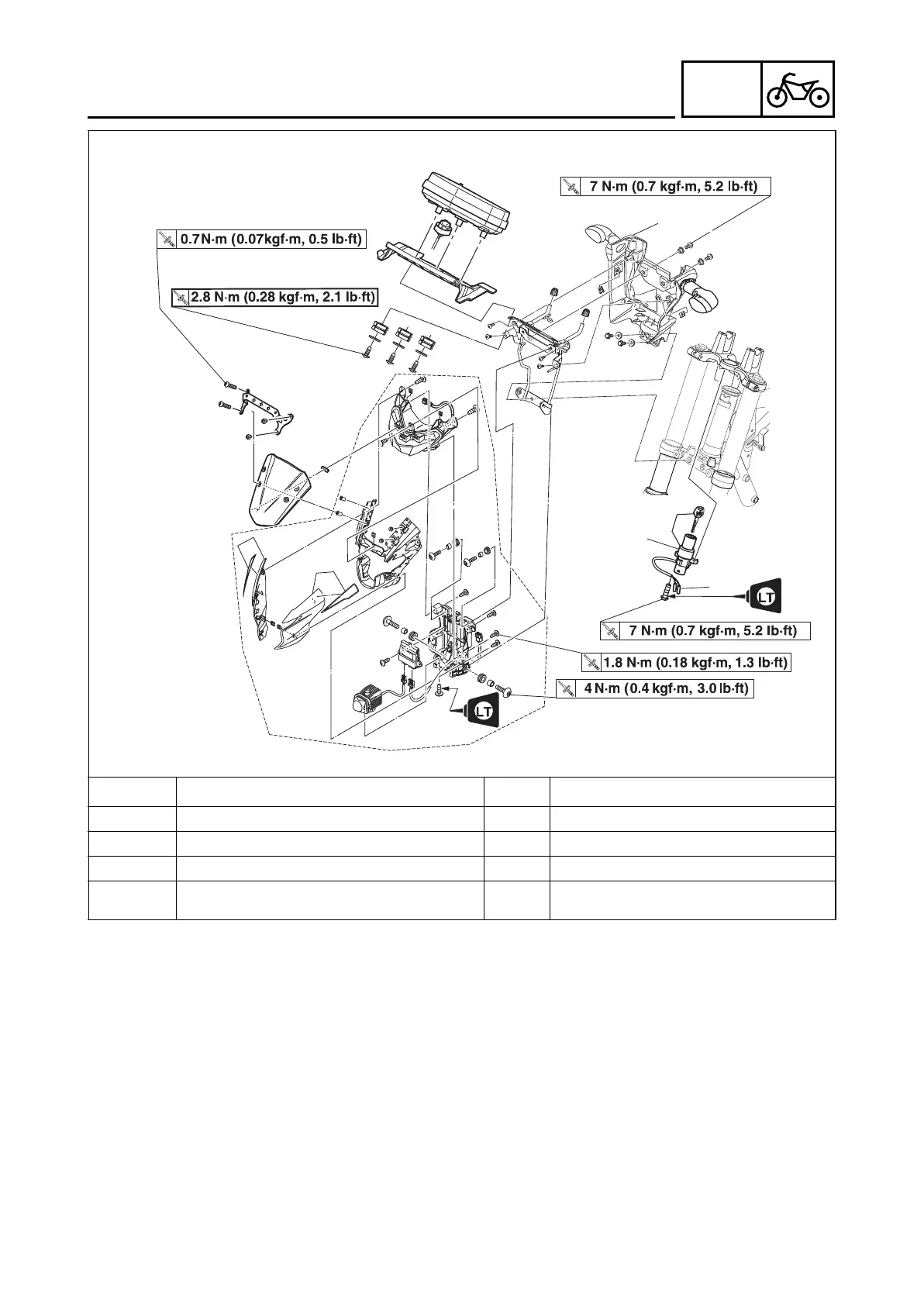

Removing the headlight assembly / meter assembly / auxiliary light assembly
Order Job/Parts to remove Q’ty Remarks
13
Headlight stay with indicators 1
14
lgnition switch connectors 1
15
Main switch steering lock 1
For installation, reverse the removal proce-
dure.
* Removing and installing the main switch steering lock screw by using special tool [Main switch steering
lock (T-30) - (YSST-611A)].
