4-6
CHAS

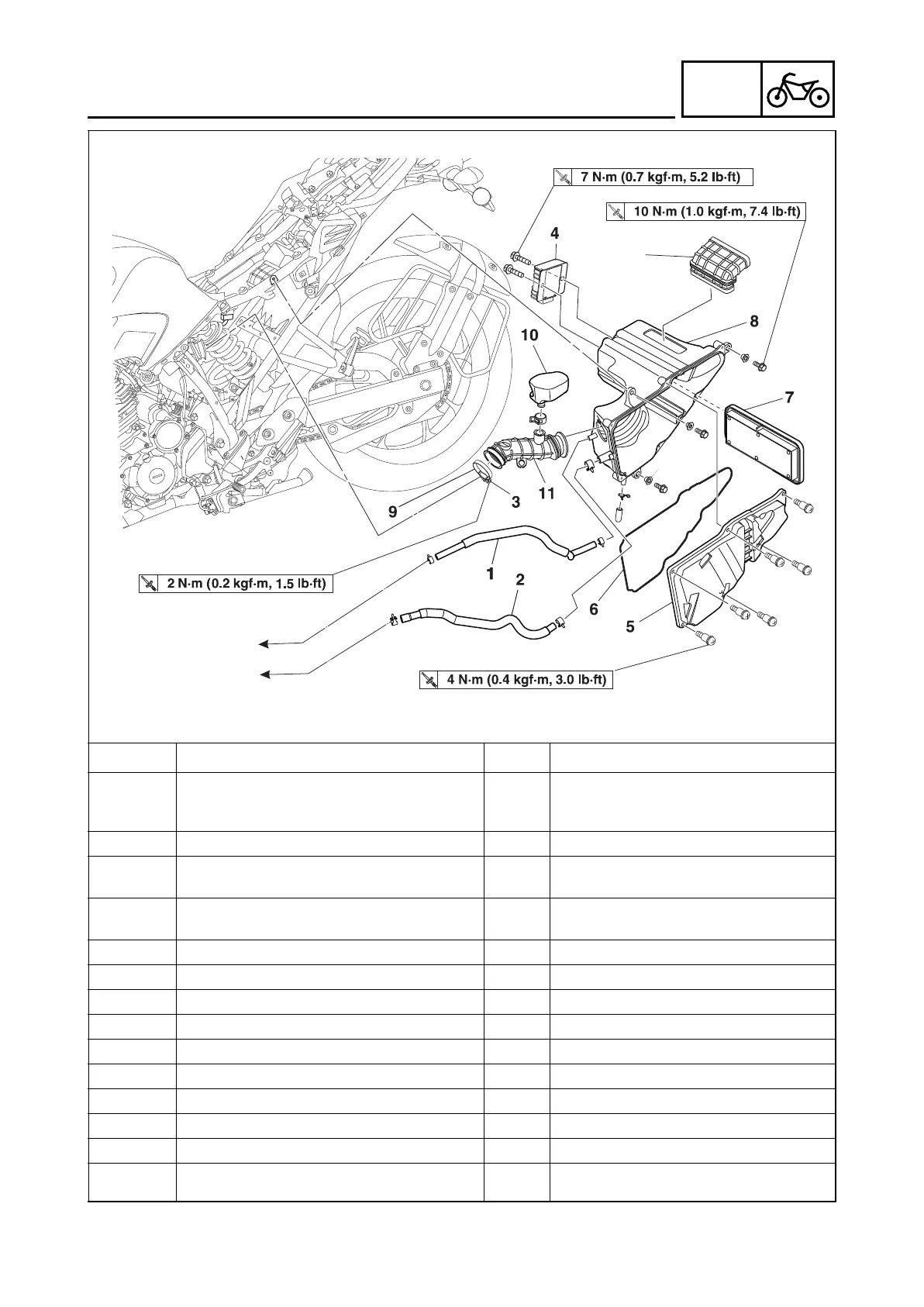

Removing the air filter case
Order Job/Parts to remove Q’ty Remarks
Passenger seat, rider seat, Left side cover,
Right side cover, Tail cover, Left rear side
cover
1 Refer to “GENERAL CHASSIS” on
page 4-1.
1
Cylinder head breather hose 1 Disconnect.
2
Air induction system hose (Air induction
system solenoid to air filter case)
1 Disconnect.
3
Air filter case/Throttle body joint clamp
screw
1 Loosen.
4
Rectifier regulator unit 1
5
Air filter case cover 1
6
Air filter seal 1
7
Air filter element 1
8
Air filter case 1
9
Air filter case/Throttle body joint clamp 1
10
Resonator 1
11
Air filter hose 1
12
Duct 1
For installation, reverse the removal proce-
dure.
12
A: Engine breather pipe
B: Air induction system solenoid
A
B
