Yamaha FZ 25 2021 - Front Wheel Service

4-7
CHAS
EAS20028
FRONT WHEEL

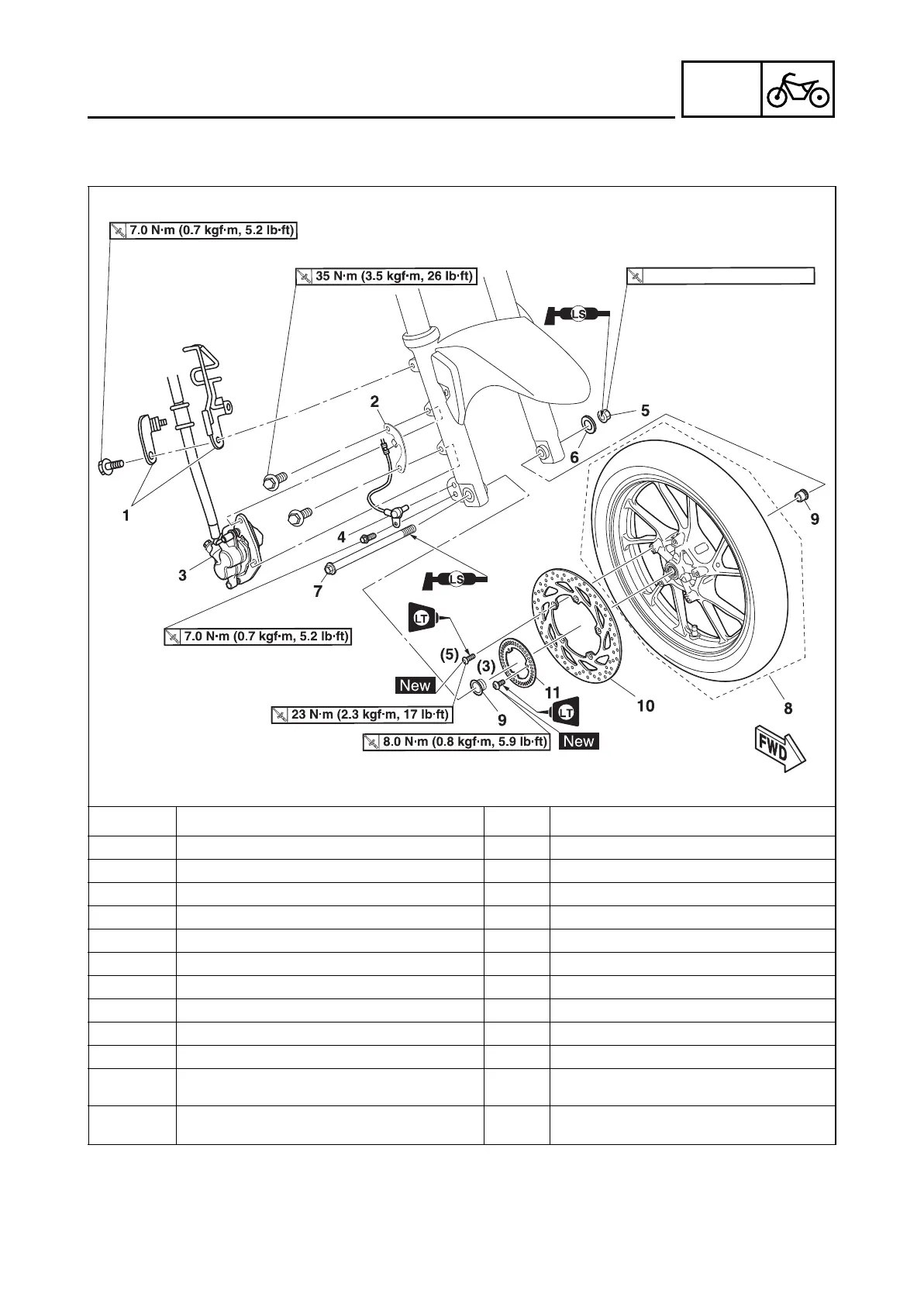

Removing the front wheel and brake disc
Order Job/Parts to remove Q’ty Remarks
1 Front brake hose holder 1
2 Sensor lead holder 1
3 Front brake caliper 1
4 Front wheel sensor 1
5 Front wheel axle nut 1
6Washer 1
7 Front wheel axle 1
8 Front wheel 1
9 Collar 2
10 Front brake disc 1
11 Front wheel sensor rotor 1
Use “Torx bit T-25” for wheel sensor rotor
bolt.
For installation, reverse the removal proce-
dure.
38 N·m (3.8 kgf·m, 28 lb·ft)
