M7CL Owner’s Manual

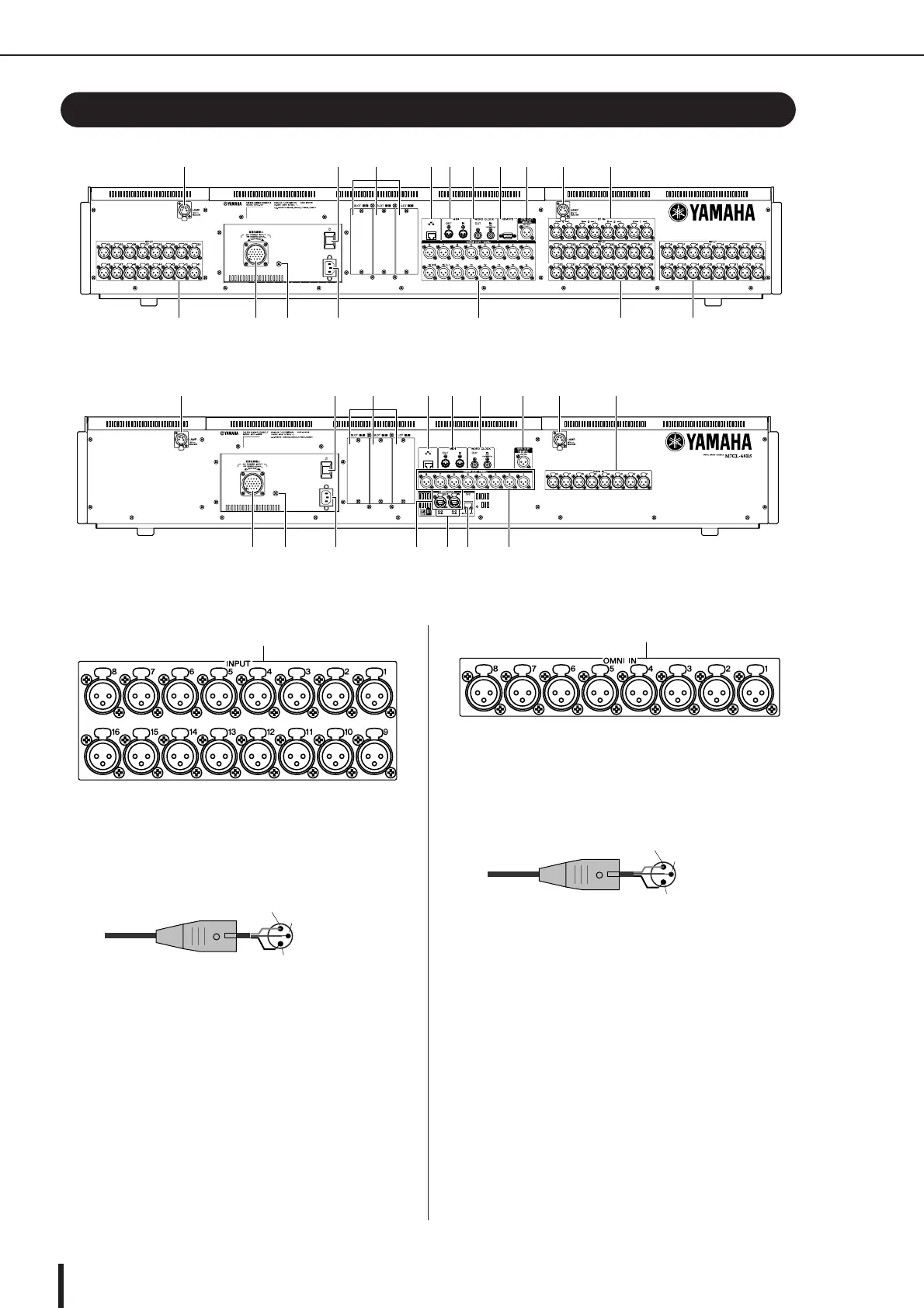

Rear panel
24
1 INPUT jacks (M7CL-32/48)
These are balanced XLR-3-31 female input jacks for
inputting analog audio signals from line level devices or
microphones. Nominal input level is -62 dBu to +10 dBu.
B OMNI IN jacks (M7CL48-ES)
These are balanced XLR-3-31 female input jacks for
inputting analog audio signals from line level devices or
microphones. Nominal input level is -62 dBu to +10 dBu.
Rear panel
1 EQ O 1 1R
NJIHGFD CPD
M7CL-48
244 689J
5Q KR O
P
LM
N
M7CL-48ES
1
2 (hot)
3 (cold)
1 (ground)
Male XLR plug
2
2 (hot)
3 (cold)
1 (ground)
Male XLR plug
