Sending the signal from an input channel to the STEREO/MONO buses
66

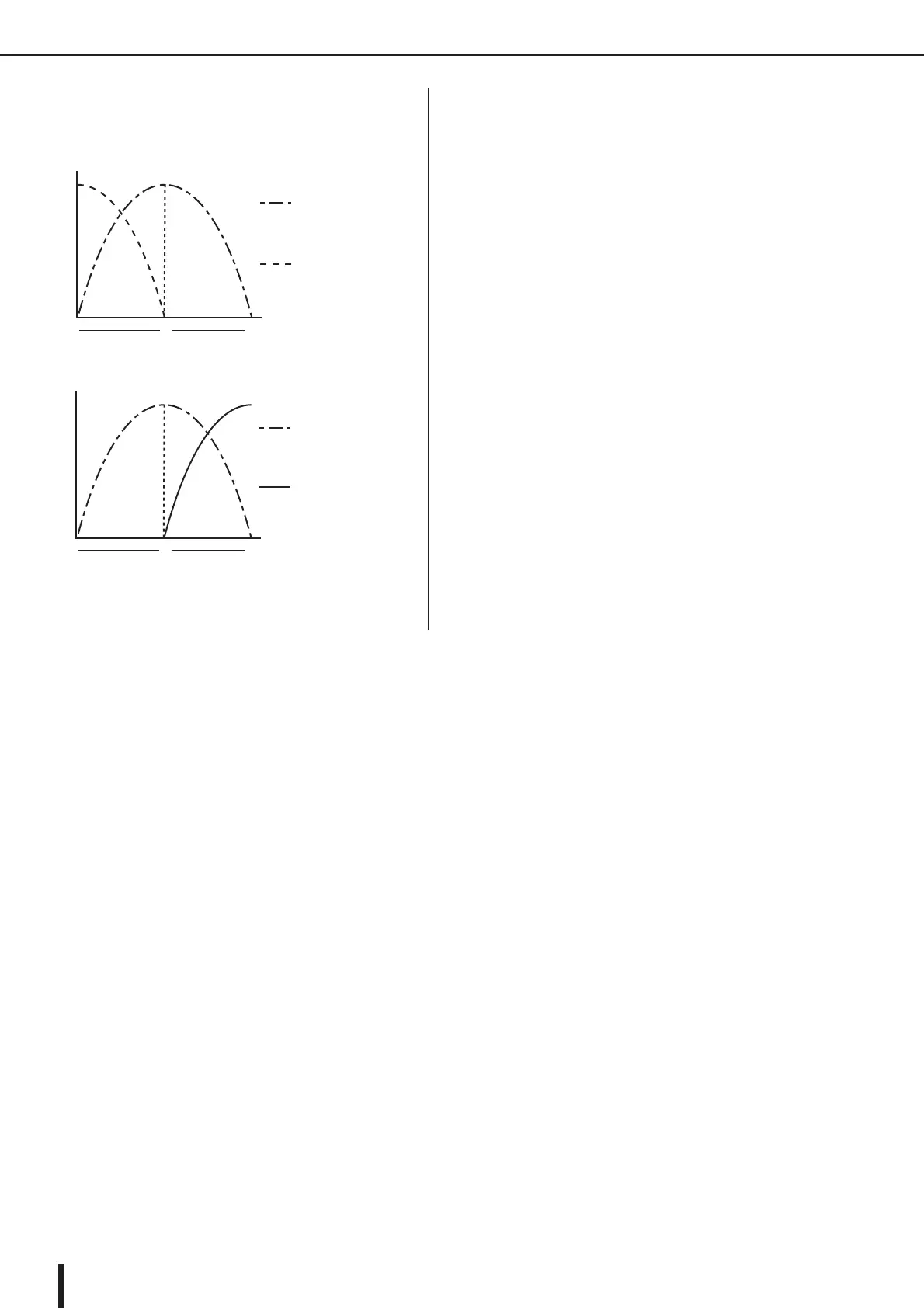

Operating the TO ST BALANCE knob of a ST IN
channel will change the level of the signals sent from
the ST IN L/R channels to the STEREO (L/R) bus and
MONO (C) bus as shown in the following diagram.
Signal sent from the
ST IN (L) channel to
the STEREO (L) bus
Signal sent from the
ST IN (L) channel to
the MONO (C) bus
TO ST BALANCE knob
CLR
Signal level
CLR
Signal sent from the
ST IN (R) channel to
the STEREO (R) bus
Signal sent from the
ST IN (R) channel to
the MONO (C) bus
TO ST BALANCE knob
Signal level
