Main L&R (Main L&R Output Gain)
Determines the output gain of the OUTPUT [L/MONO]/[R] jacks.
Settings: -6dB, +0dB, +6dB, +12dB
USB Main (USB Main L&R Output Gain)
Determines the output gain of the Main L&R channel of the [USB TO HOST] terminal.
Settings: -6dB, +0dB, +6dB, +12dB
USB 1-8 (USB 1–8 Output Gain)
Determines the output gain of 1–8 channels of the [USB TO HOST] terminal.
Settings: -6dB, +0dB, +6dB, +12dB
Direct Monitor (Direct Monitor Switch)
Determines whether or not the audio signal which is output to the external device via the “Main L&R,” “USB
Main” or “USB 1-8” channels also sounds from this instrument (Direct Monitoring). When this is set to “on,”
the audio signal which is output via the “Main L&R,” “USB Main” or “USB 1-8” channels is also output to the
OUTPUT [L/MONO]/[R] jacks and [PHONES] jack. When the external device is not connected via USB
cable, the Direct Monitor Switch is automatically turned on.
Settings: Off, On
Monitor Volume
Opens the USB Monitor setting display (page 175).

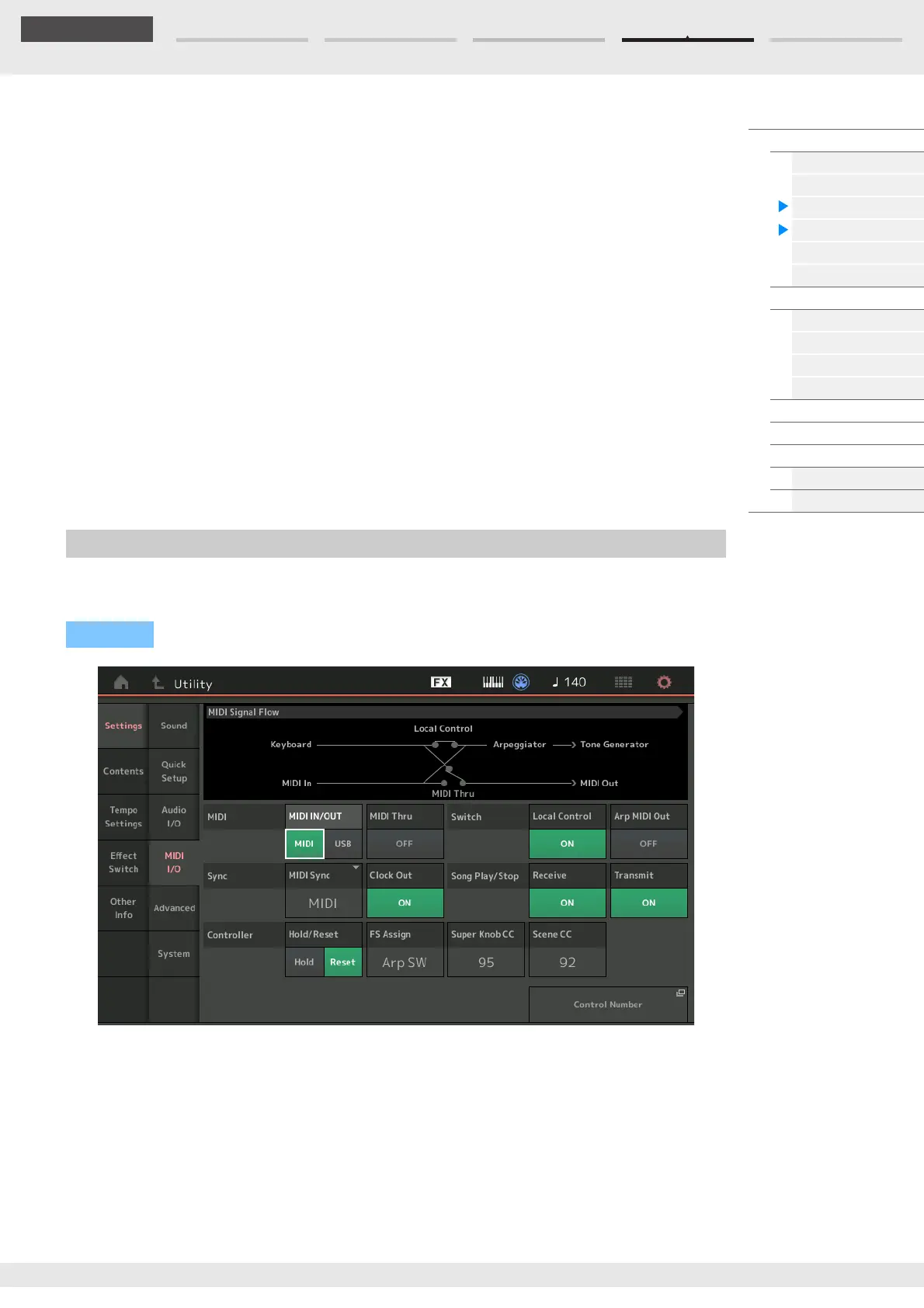

From the MIDI I/O display you can set parameters related to MIDI Input and Output.
You can control the Super Knob or switch Scenes by Control Change messages.
MIDI IN/OUT
Determines which physical output/input terminal(s) will be used for transmitting/receiving MIDI data.
Settings: MIDI, USB
NOTE The two types of terminals above cannot be used at the same time. Only one of them can be used to transmit/
receive MIDI data.
MIDI Thru
Determines whether the MIDI [OUT] terminal will be used as a MIDI Thru terminal or not.
Settings: Off, on
MIDI I/O
Operation
[UTILITY] [Settings] [MIDI I/O]
To Next Page
