From the Type display you can make comprehensive settings for the Filter unit. The available parameters
differ depending on which Filter type is selected here.
Filter Type
Determines the Filter Type for the current Element. Basically, there are four different filters: LPF (Low Pass
Filter), HPF (High Pass Filter), BPF (Band Pass Filter) and BEF (Band Elimination Filter). For details on
settings, see the Synthesizer Parameter Manual PDF document.
Settings: LPF24D, LPF24A, LPF18, LPF18s, LPF12+HPF12, LPF6+HPF12, HPF24D, HPF12, BPF12D, BPFw, BPF6, BEF12,
BEF6, DualLPF, DualHPF, DualBPF, DualBEF, LPF12+BPF6, Thru
LPF
LPF24D: A dynamic -24 dB/oct Low-Pass Filter with a characteristic digital sound. Compared to the LPF24A type,
this filter can produce a more pronounced Resonance effect.
LPF24A: A digital dynamic Low-Pass Filter with characteristics similar to a 4-pole analog synthesizer filter.
LPF18: 3-pole -18 dB/oct Low-Pass Filter.
LPF18s: 3-pole -18 dB/oct Low-Pass Filter. This filter has a smoother cutoff slope than the LPF18 type.
Filter
Type
Operation

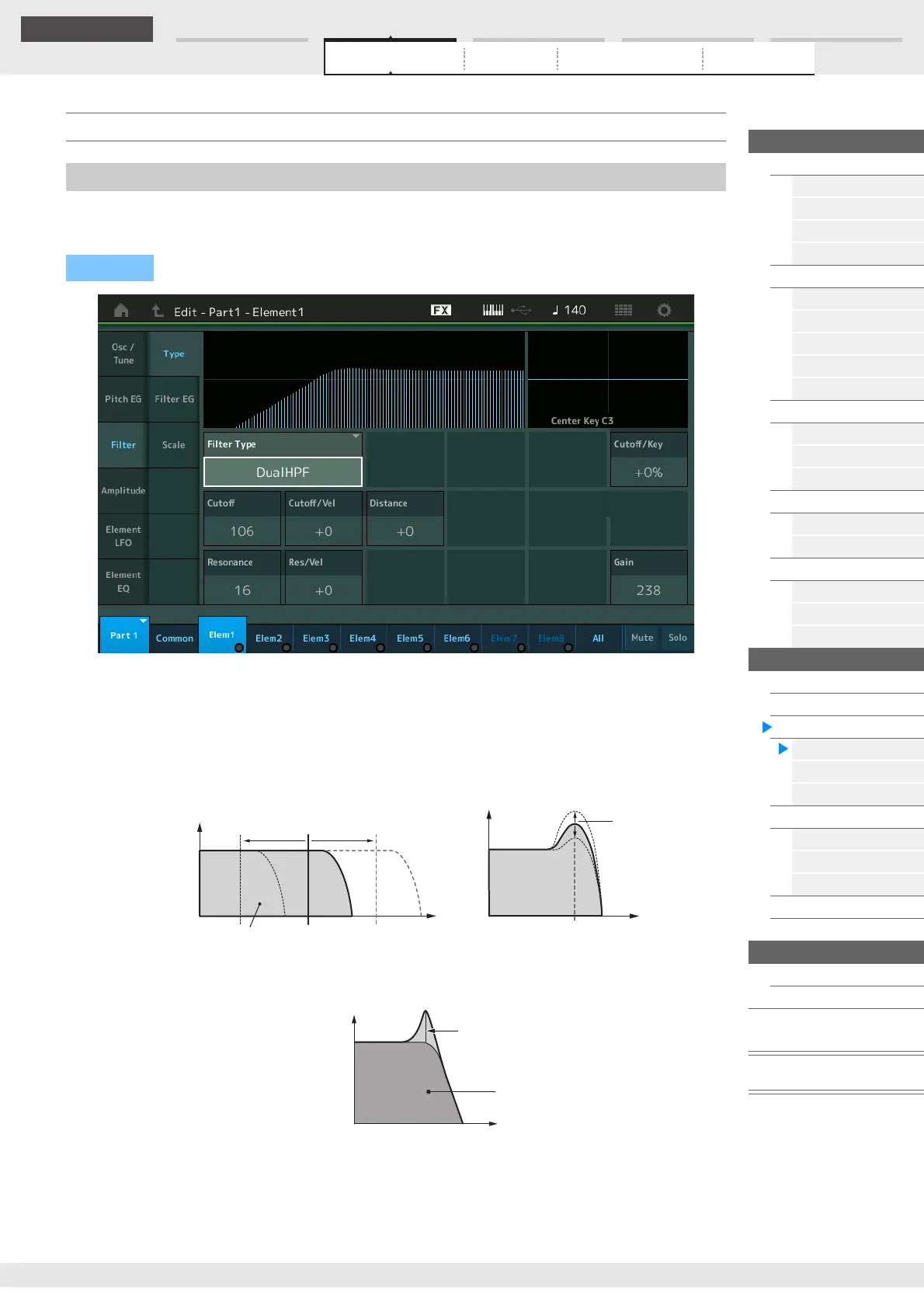

[PERFORMANCE (HOME)]  [EDIT]  Part selection  Element selection  [Filter]  [Type]
Cutoff
Frequency
Gain
Frequency
Frequencies that are
“passed” by the filter
Gain
Cutoff
Frequency
Resonance
Frequency
Resonance
Frequencies that are “passed” by the filter
Gain
Frequency
