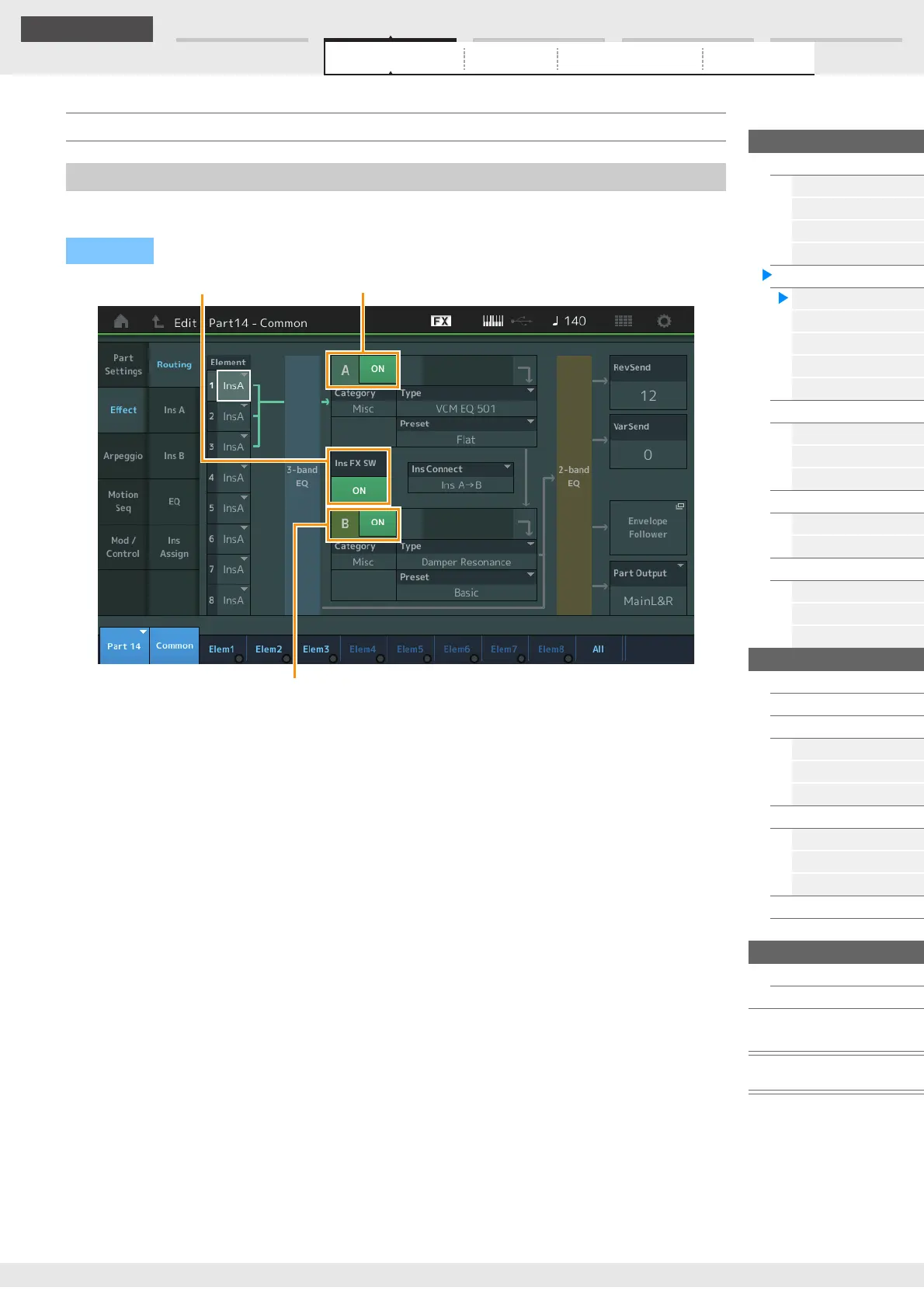

From the Routing display you can determine the Effect connections for Parts.
Element 1–8 (Element Connection Switch)
Determines which Insertion Effect (A or B) is used to process each individual Element. The “Thru” setting
lets you bypass the Insertion Effects for the specified element.
Settings: Thru, InsA (Insertion Effect A), InsB (Insertion Effect B)
Insertion FX Switch (Insertion Effect Switch)
Determines whether the Insertion Effect A/B is active or not.
For Parts 9-16, the Ins FX SW is shown at the center of the page, and the Insertion effect of the currently
being edited Part can be switched ON or OFF.
Settings: Off, On
Category (Effect Category)
Type (Effect Type)
Determines the category and type for the selected Effect.
Settings: For details on the editable Effect categories and types, see the Data List PDF document. Also, for details on the
description for each Effect type, see the Synthesizer Parameter Manual PDF document.
Preset
Allows you to call up pre-programmed settings for each Effect type, designed to be used for specific
applications and situations. You can change how the sound is affected by the selected pre-programmed
settings.
Settings: For a list of all Preset Effects, see the Data List PDF document.
Effect
Routing
Operation
[PERFORMANCE (HOME)] [EDIT] Part selection Element [Common] [Effect] [Routing]
Insertion FX A Switch
Insertion FX B Switch
Ins FX SW
