Time/Vel (FEG Time Velocity Sensitivity)
Segment (FEG Time Velocity Sensitivity Segment)
Determines how the FEG transition time (speed) responds to Velocity, or the strength with which the key is
pressed. Select the “Segment,” and then set its “Time/Vel” parameter.
Settings: Time/Vel: -64 – +63
Positive values: High Velocities result in a fast FEG transition speed while low Velocities result in a slow speed.
Negative values: High Velocities result in a slow FEG transition speed while low Velocities result in a fast speed.
0: The pitch transition speed does not change, regardless of the Velocity.
Settings: Segment: Attack, Atk+Dcy (Attack+Decay), Decay, Atk+Rls (Attack+Release), All
Attack: Time/Vel parameter affects Attack time.
Atk+Dcy: Time/Vel Value affects Attack/Decay1 time.
Decay: Time/Vel parameter affects Decay Time.
Atk+Rls: Time/Vel Value affects Attack/Release time.
All: Time/Vel affects all FEG Time parameters.
FEG Depth
Determines the Cutoff Frequency range for Filter EG.
Settings: -64 – +63
Depth/Vel (FEG Depth Velocity Sensitivity)
Curve (FEG Depth Velocity Sensitivity Curve)

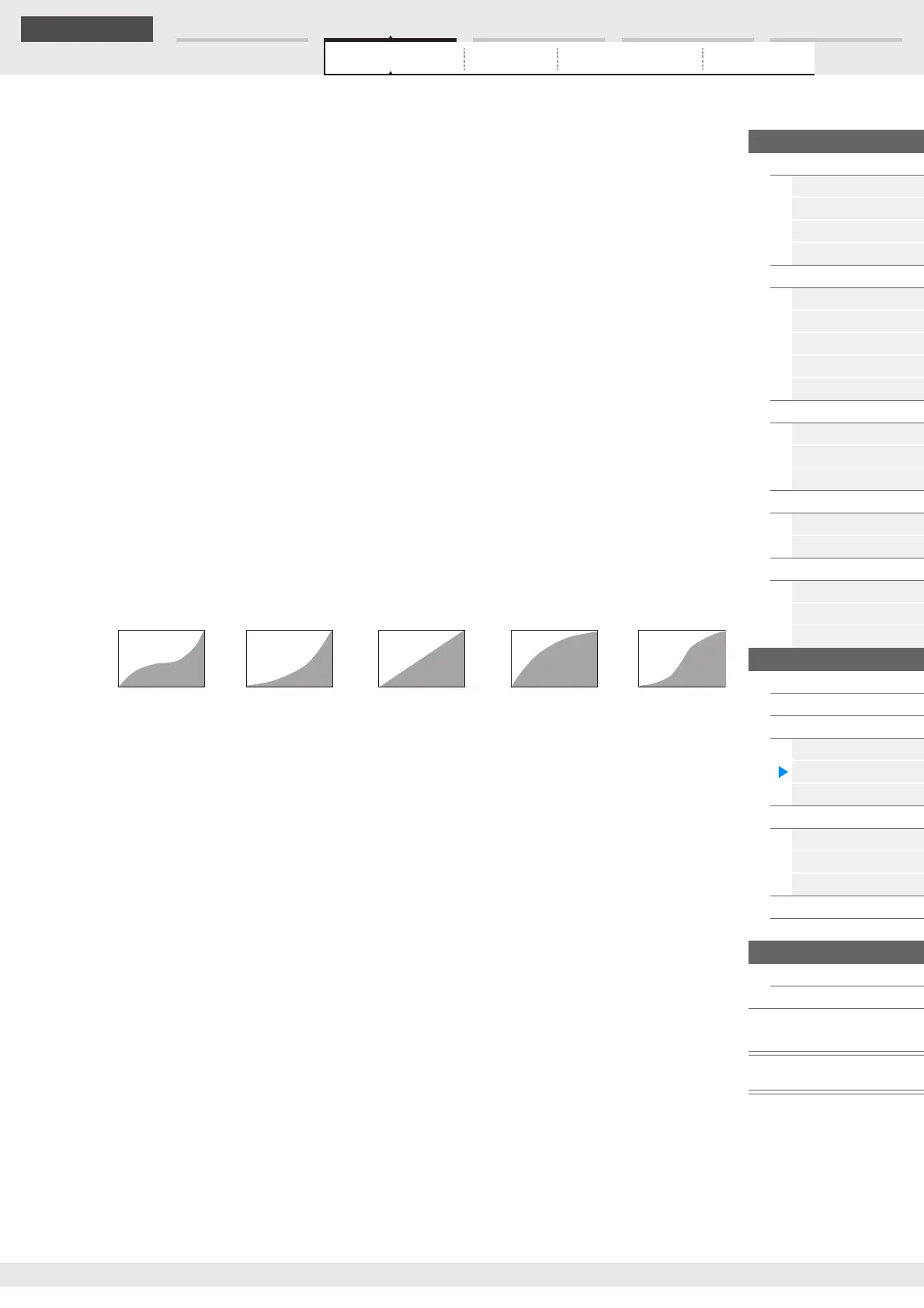

Determines how the range of the Cutoff Frequency responds to Velocity (strength) with which you play
notes on the keyboard. The Curve parameter lets you select from five different preset velocity curves
(graphically indicated in the display) that determine how velocity affects the Filter EG Depth. In the
illustrations below, the vertical axis indicates Cutoff Frequency Change and the horizontal axis indicates
Velocity.
Settings: Depth/Vel: -64 – +63
Settings: Curve: 0–4
NOTE For details on FEG, see the Synthesizer Parameter Manual PDF document.
