Display (touch panel) configuration

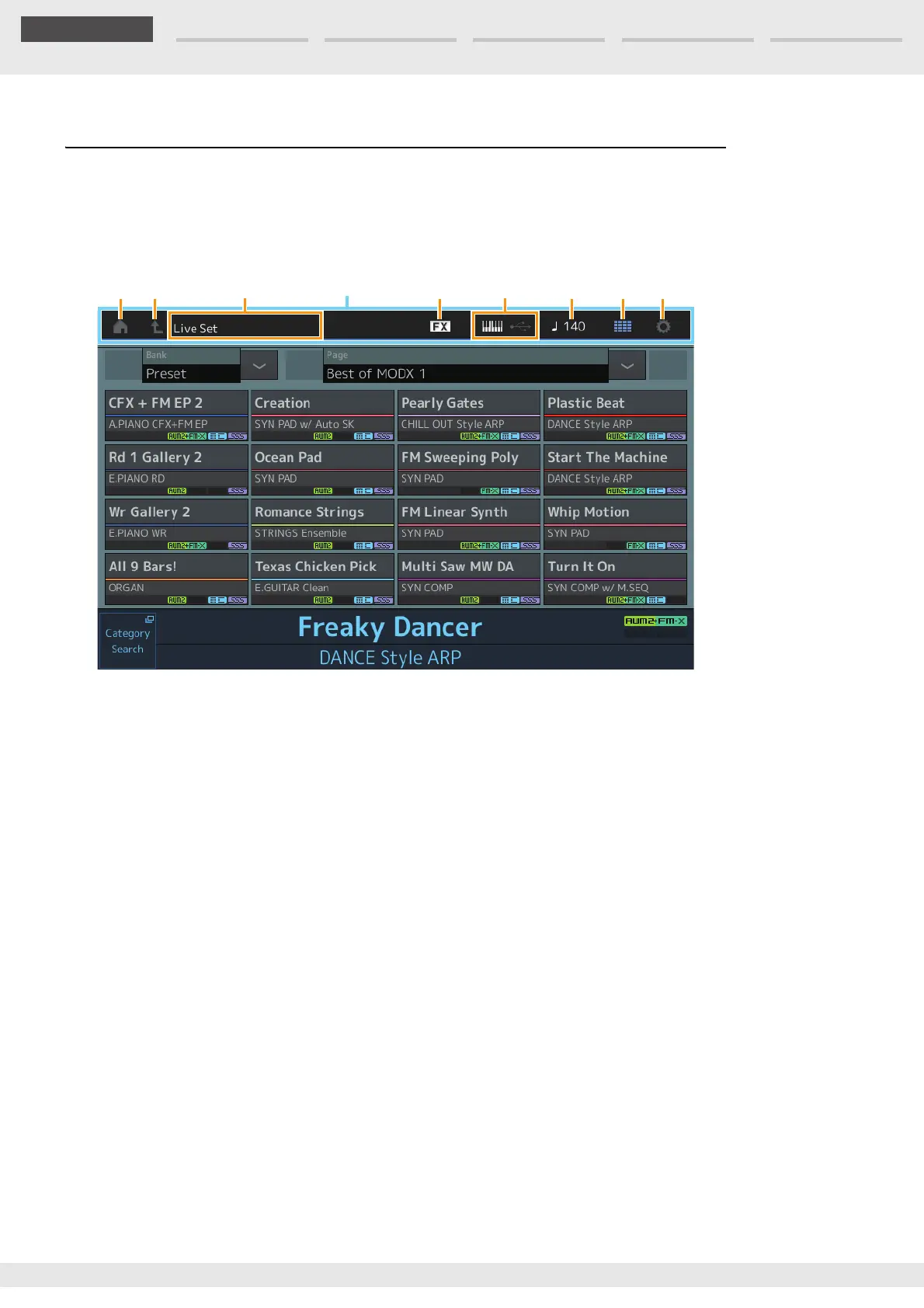

This section explains the navigation bar which is common to all types of displays.
1 HOME icon
Moves to the Performance Play display (page 27).
2 EXIT icon
Functions same as the [EXIT] button on the panel. Press this icon to exit from the current display and
return to the previous level in the hierarchy.
3 [INFORMATION] area
Displays helpful information, including the currently selected display name.
4 EFFECT icon
Touch the icon to call up the Effect Switch display (page 209). The icon turns off when any of the Effect
blocks (Insertion, System or Master) is off.
5 QUICK SETUP icon
Displays the settings of Local Control ON/OFF and MIDI IN/OUT.
The keyboard-shaped icon lights up when Local Control is set to ON and turns off when Local Control
is set to OFF.
When MIDI is set as the MIDI IN/OUT setting, a MIDI connector-shaped icon appears. When USB is set
as the MIDI IN/OUT setting, a USB connector-shaped icon appears. Touch the desired icon to call up
the corresponding Quick Setup display (page 188).
6 TEMPO SETTINGS icon
Displays the tempo of the currently selected Performance. Touch the icon to call up the Tempo Settings
display (page 207).
7 LIVE SET icon
Touch the icon to call up the Live Set display (page 212).
8 UTILITY icon
Touch the icon to call up the last opened display among the Utility displays.
