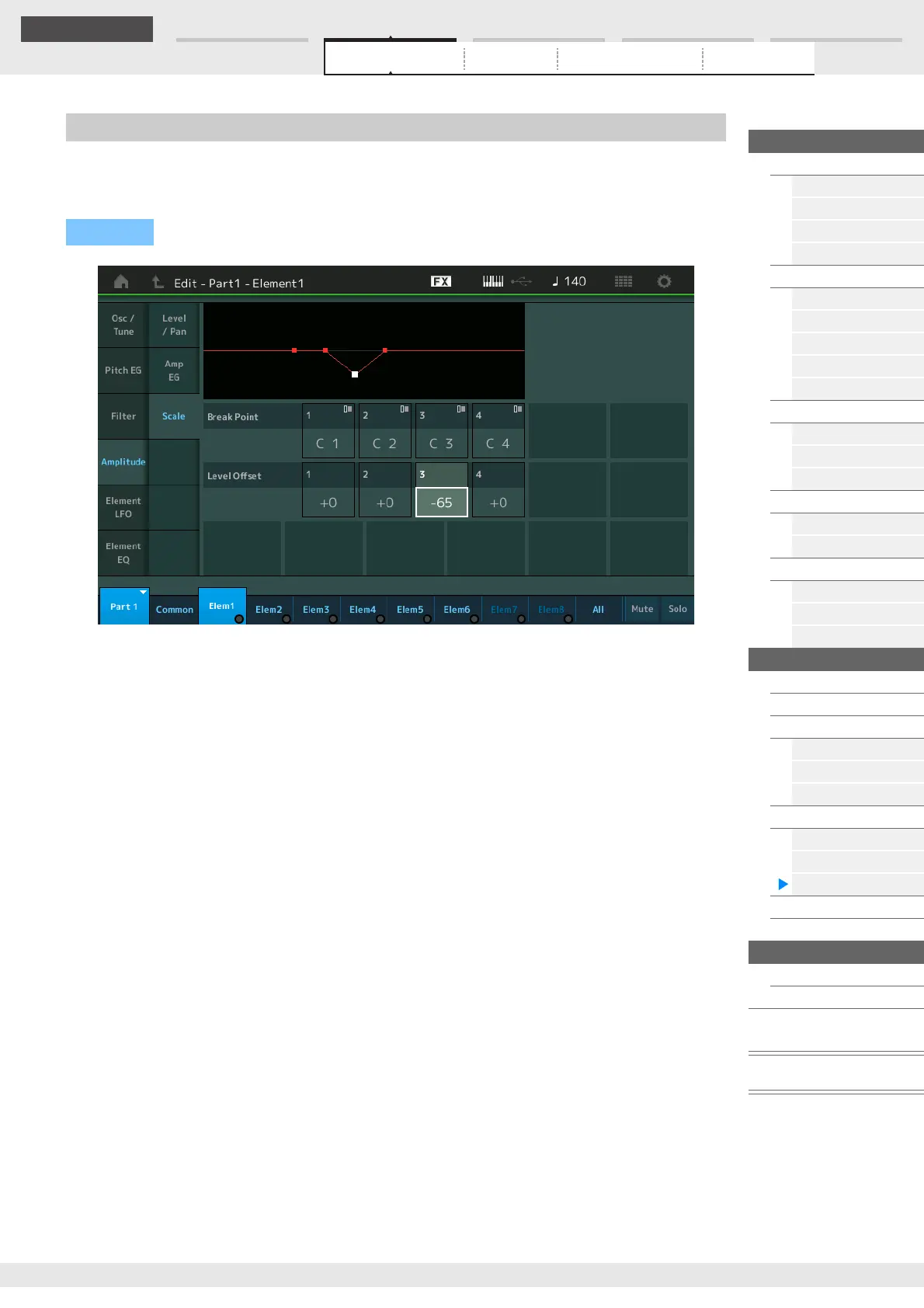

From the Amplitude Scale display you can make Amplitude Scale settings for each Element.
Amplitude Scale function controls the Amplitude output level according to the positions of the notes on the
keyboard.
Break Point 1–4
Determines the four Amplitude Scale Break Points by specifying their respective note numbers.
Settings: C -2 – G8
NOTE Break Points 1 to 4 will be automatically be arranged in ascending order across the keyboard.
Level Offset 1–4
Determines the offset value of the level of each Amplitude Scale Break Point.
Settings: -128 – +127
NOTE For details on setting examples of the Amplitude Scaling, see the Synthesizer Parameter Manual PDF
document.
Scale (Amplitude Scale)
Operation
[PERFORMANCE (HOME)]  [EDIT]  Part selection  Element selection  [Amplitude]  [Scale]
