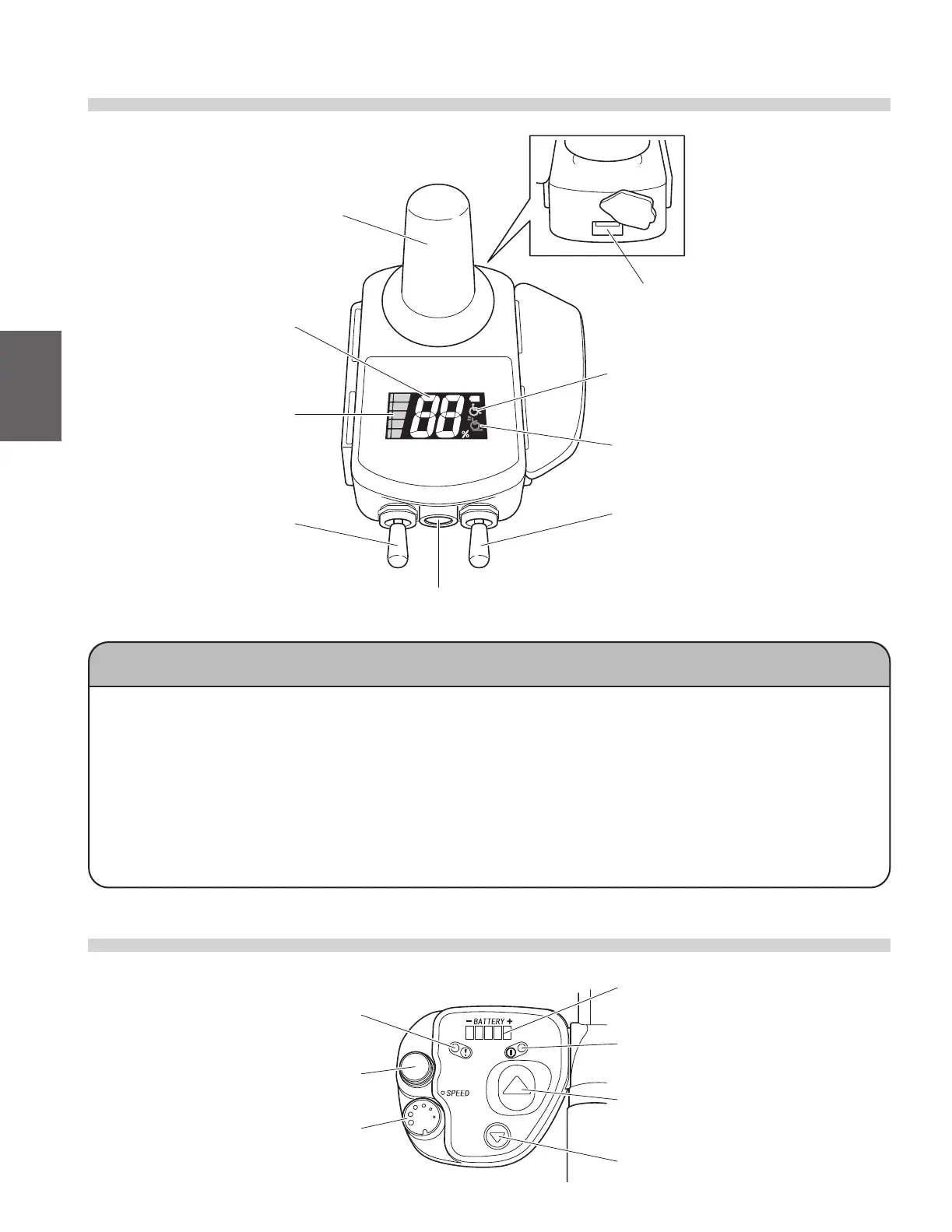

2.3. Controller
USB Power port
Power switch
(Page 40)
Horn switch
(Page 45)
Speed selector
switch (Page 42)
Warning lamp
(Red)
Power switch
(Pages 50–53)
Speed adjustment
Dial (Page 51)
Battery
residual capacity lamp (Page 50)
Power lamp (Green)
Forward switch (Pages 50 and 51)
Reverse switch (Pages 50 and 51)
Battery residual
capacity indicator
(Pages 40–43)
Speed indicator
(Page 42)
Movement possible lamp
Retracted anti-tip device
warning lamp
Joystick
(Page 40)
(Pages 35, 40–45)
(Pages 50–53)
NOTICE
● TheUSBpowerportisusedonlytosupplypower.Itdoesnotfeatureanycommunication
functions.
● ThecapacityoftheUSBpowerportis500mA.
It is not capable of charging / using a USB device that requires a power current greater than
500 mA.
● DonotinsertanyobjectotherthanaUSBconnectorintotheUSBpowerport.
Otherwise, the USB power port may be damaged.
● WhennotusingtheUSBpowerport,besuretoinstallitsrubbercap.
2.4. Assistant Controller (Optional)
