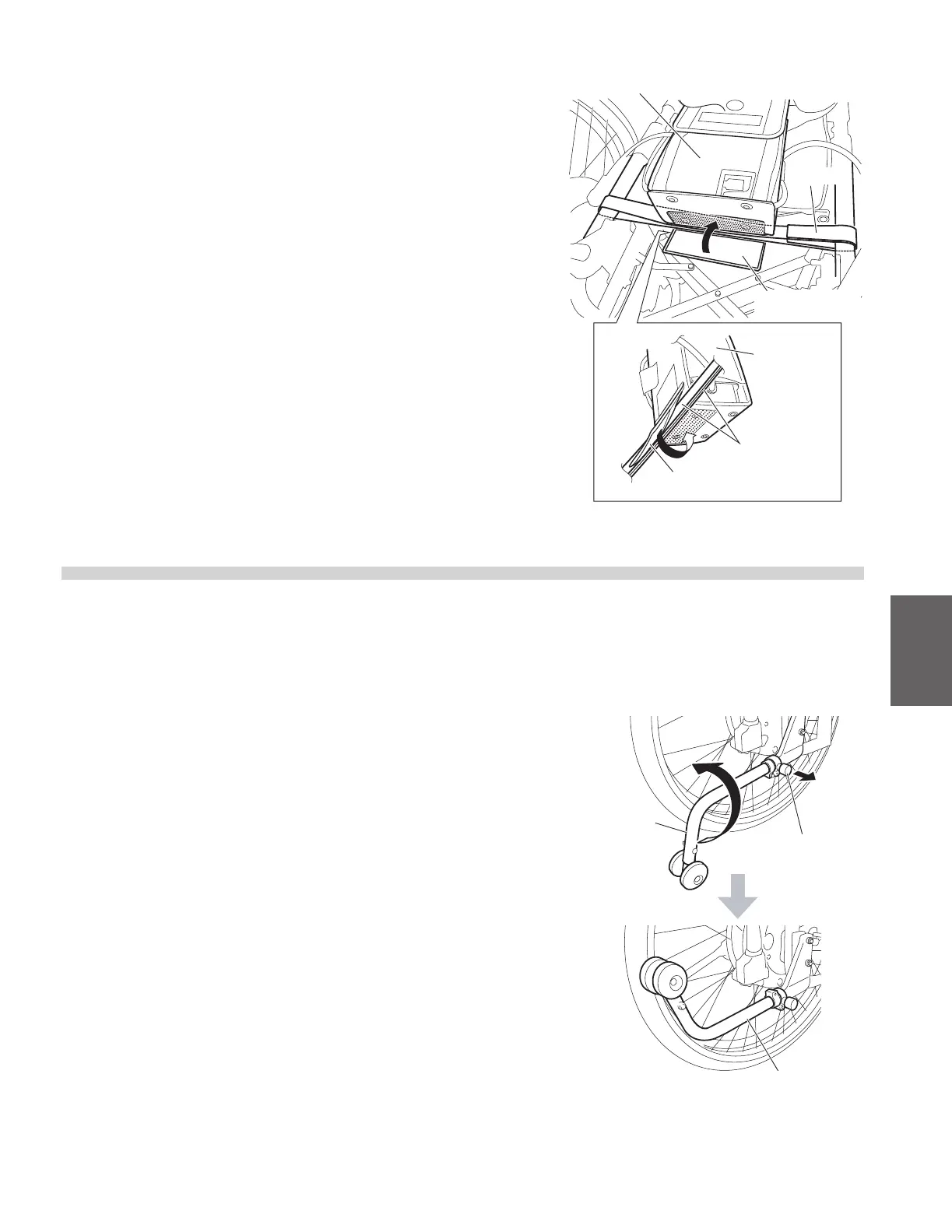

(13) Remove the hook-and-loop fastener at the bottom sur-
face of battery bag and feed both two (2) belts through.
(14) Attach the hook-and-loop fastener and fix the battery
bag.
Hook-and-Loop
Fastener
Hook-and-Loop
Fastener
Battery Bag
Belt
Belt
11.3. Anti-tip Device
The anti-tip device of the NAVIGO can be turned upwards. Do so when going over bumps with the assis-
tant operations. Immediately after going over a bump, return the anti-tip device to its original position.
NAVIGO24″
(1) Turning upwards the anti-tip device
Pull the lock knob and turn the anti-tip device inward while
the lock lever is pushed.
Lock lever
Anti-tip device
