11.2. How to Remove and Install the Battery Bag

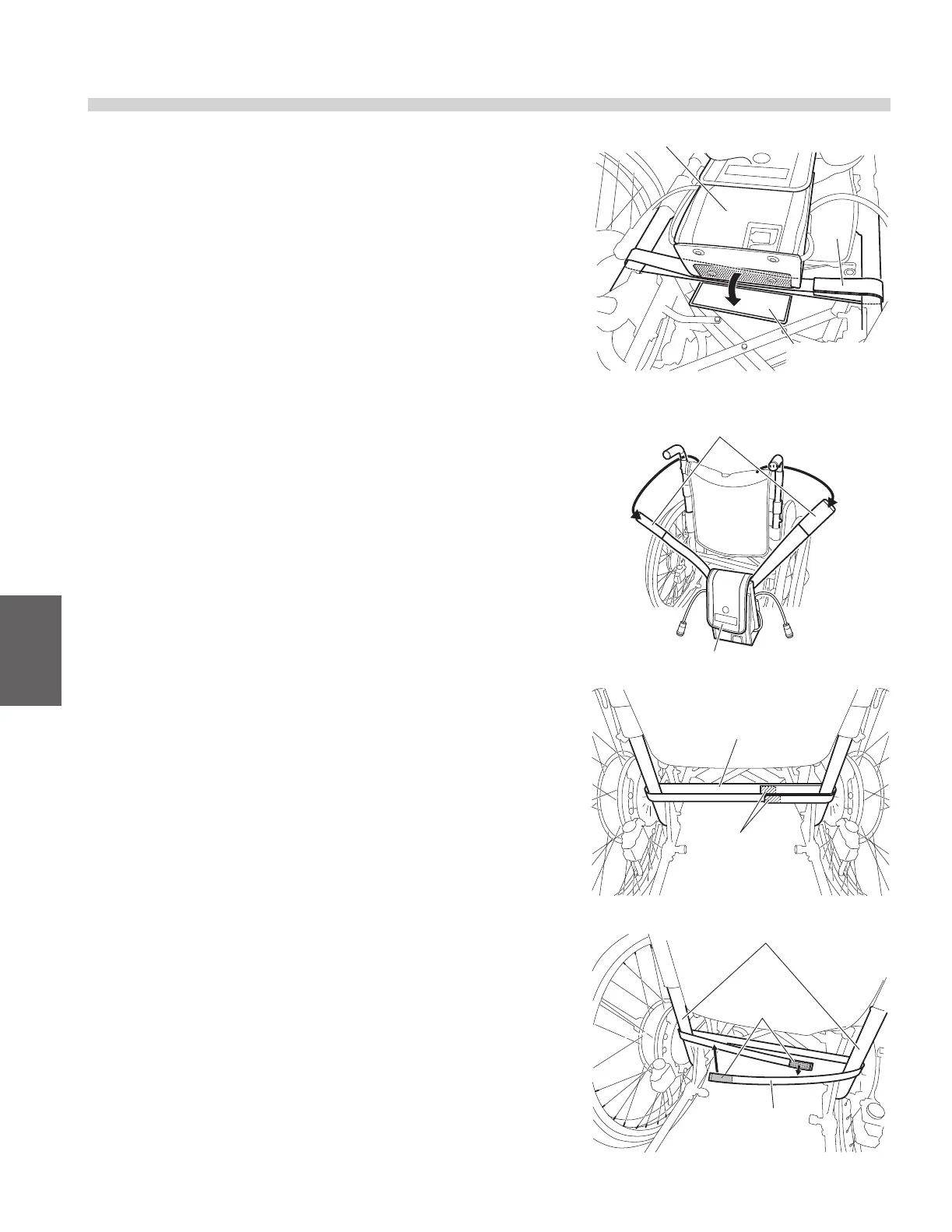

(1) Remove the battery.
(2) Remove the coupler at cable tip and install a cap.
(3) Remove the hook-and-loop fastener underneath of
battery bag.
(4) Remove the hook-and-loop fastener of battery bag band
part and remove the battery bag.
Hook-and-Loop
Belt
Battery Bag
Band Part of Battery Bag
(Rear side is Hook-and-Loop
Fastener for entire surface)
(5) Remove the hook-and-loop fastener of belt and remove
the belt.
(6) Feed the belt through the frame under back support and
attach the hook-and-loop fastener.
Belt
Hook-and-Loop
Fastener of Belt
Frame
Hook-and-Loop
Fastener
Belt
To Next Page
