Yamaha NMAX - Controls and Instruments

3
3-3
Description
1
2 3 7
6
8
5
4
9

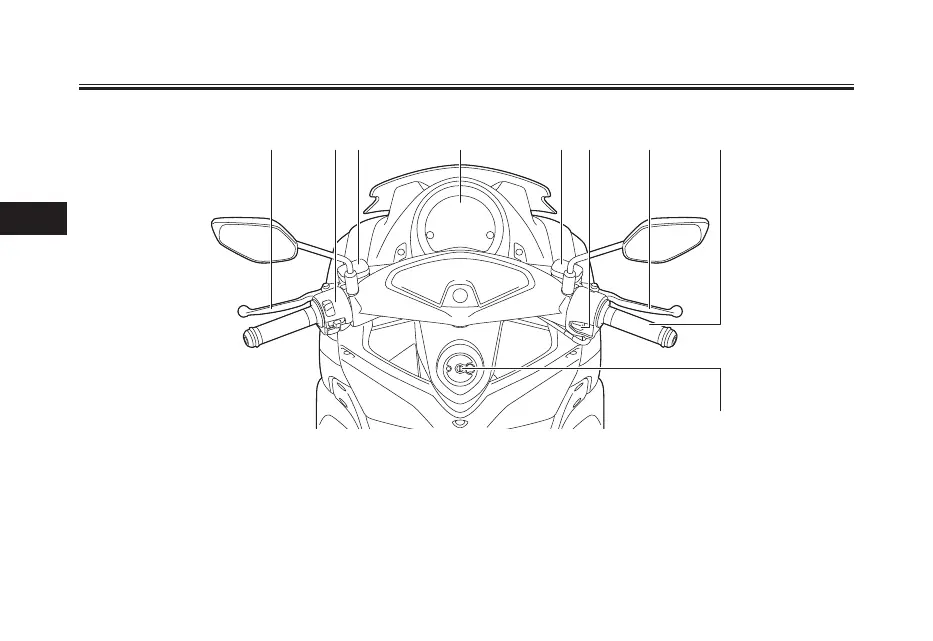

1. Rear brake lever (page 4-10)
2. Left handlebar switches (page 4-9)
3. Rear brake fluid reservoir (page 7-21)
4. Multi-function meter unit (page 4-4)
5. Front brake fluid reservoir (page 7-21)
6. Start switch (page 4-9)
7. Front brake lever (page 4-10)
8. Throttle grip (page 7-17)
9. Main switch/steering lock (page 4-1)
Controls and instruments
