Yamaha NMAX - Headlight; Replacing an Auxiliary Light Bulb

22
1
7
7-29
Periodic maintenance and adjustment
NOTICE

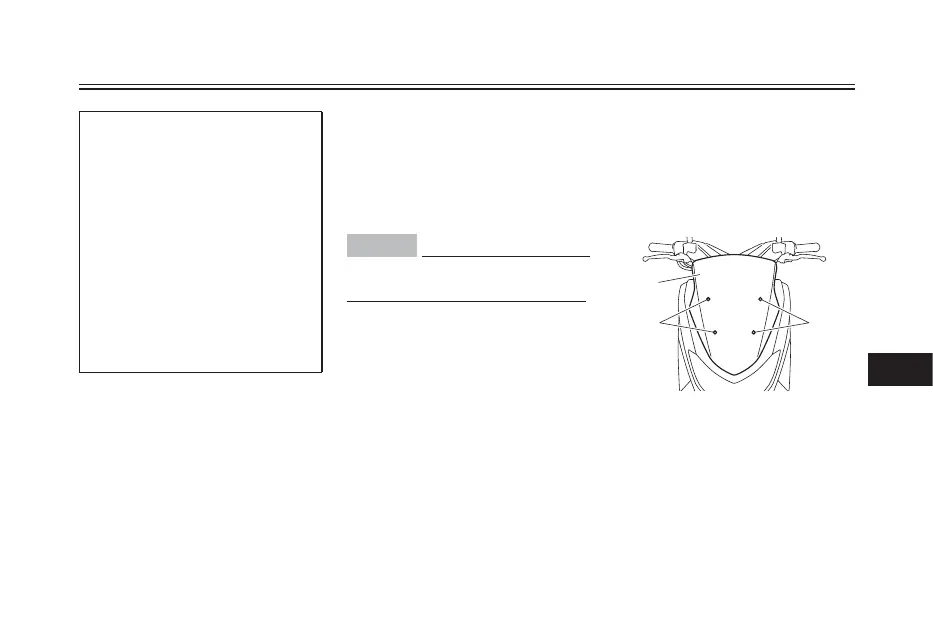

1. Windshield
2. Screw
Specified fuses:
Main fuse:
15.0 A
Main fuse 2:
7.5 A
Taillight fuse:
7.5 A
Signaling system fuse:
7.5 A
*ABS motor fuse:
30.0 A
*ABS solenoid fuse:
15.0 A
*ABS control unit fuse:
7.5 A
Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
Install the battery cover by install-
ing the screws.
Close the seat.
Headlight
This model is equipped with an LED-
type headlight.
If a headlight does not come on, have
a Yamaha dealer check its electrical
circuit.
Do not affix any type of tinted film or
stickers to the headlight lens.
Replacing an auxiliary light bulb
This model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.
Remove the windshield by remov-
ing the screws.
Remove the headlight cover by re-
moving the bolts.
5.
6.
7.
8.
* ABS Model Only.
1.
2.
