Yamaha NMAX - Indicator lights and warning lights

6
5
4
1
2
3
1
2
12
4
4-2

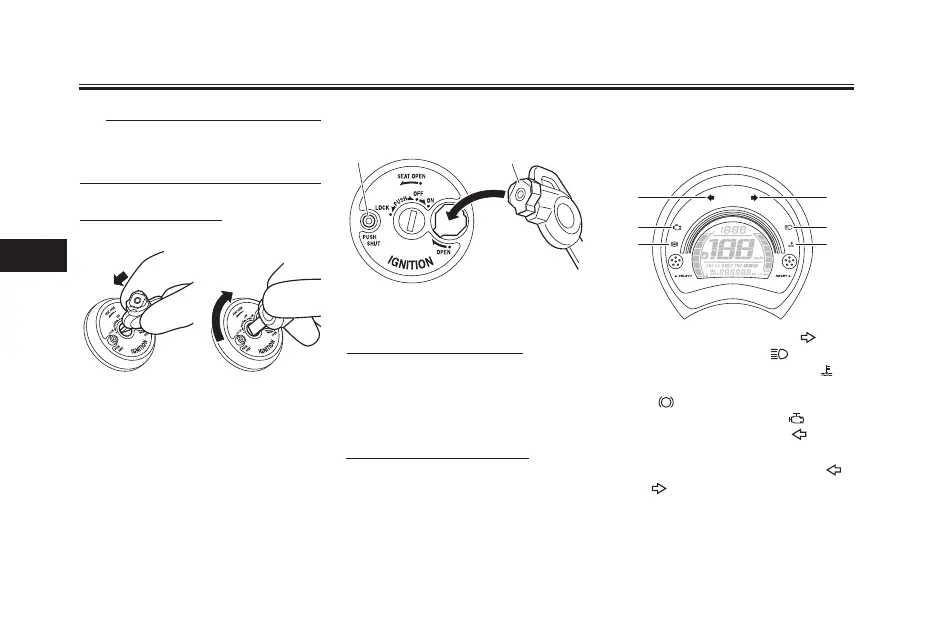

Instrument and control functions
TIP
To unlock the steering
Keyhole shutter
1. Push.
2. Turn.
1. “PUSH SHUT” button
2. Key head
1. Right turn signal indicator light “ ”
2. High beam indicator light “ ”
3. Coolant temperature warning light “ ”
4. Anti-lock Brake System (ABS) warning
light “ ” (ABS model only)
5. Engine trouble warning light “ ”
6. Left turn signal indicator light “ ”
ABS
If the steering will not lock, try turning
the handlebars back to the right
slightly.
Insert the key.
With the key in the “LOCK”
position, push the key in and turn it
to “OFF”.
1.
2.
To open the keyhole shutter
Insert the key head into the keyhole
shutter receptacle as shown, and then
turn the key to the right to open the
keyhole shutter.
To close the keyhole shutter
Press the “PUSH SHUT” button to
close the keyhole shutter.
Indicator lights and warning
lights
Turn signal indicator lights “ ”
and “ ”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
