Periodic maintenance and adjustment
Panel A
To remove the panel
1. Remove the bolts.
To install the panel
Panel B
1. Panel A
2. Panel B
1. Panel A
2. Bolt
1. Panel B
2. Quick fastener

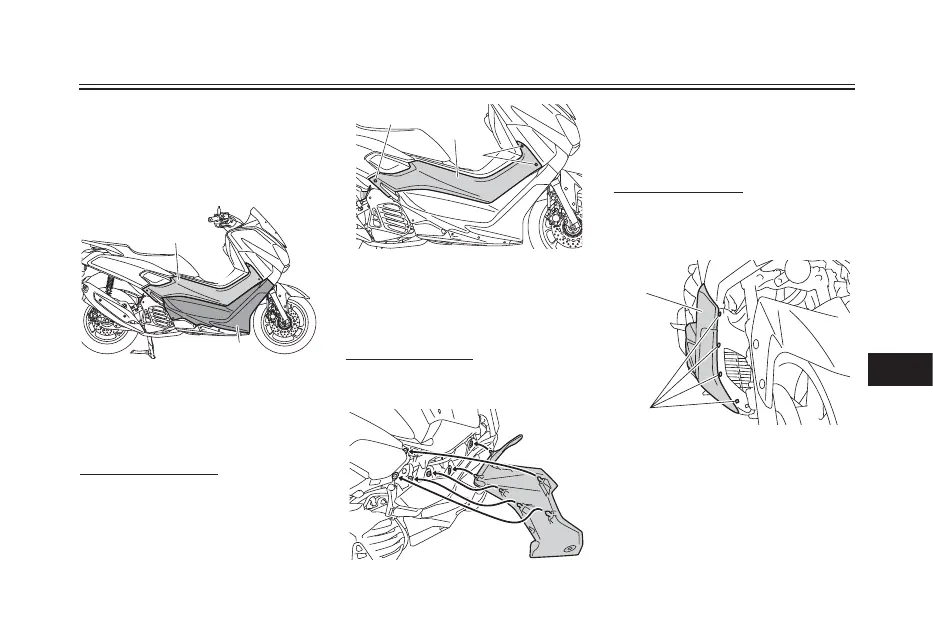

Removing and installing panels
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
2. Extend the right passenger footrest,
and then pull the panel outward.
1. Place the panel in the original posi-
tion, and then install the bolts.
2. Retract the right passenger footrest
to its original position.
To remove the panel
1. Remove panel A.
2. Remove the quick fasteners and the
bolt.
