Periodic maintenance and adjustment
If a fuse is blown, replace it as follows.

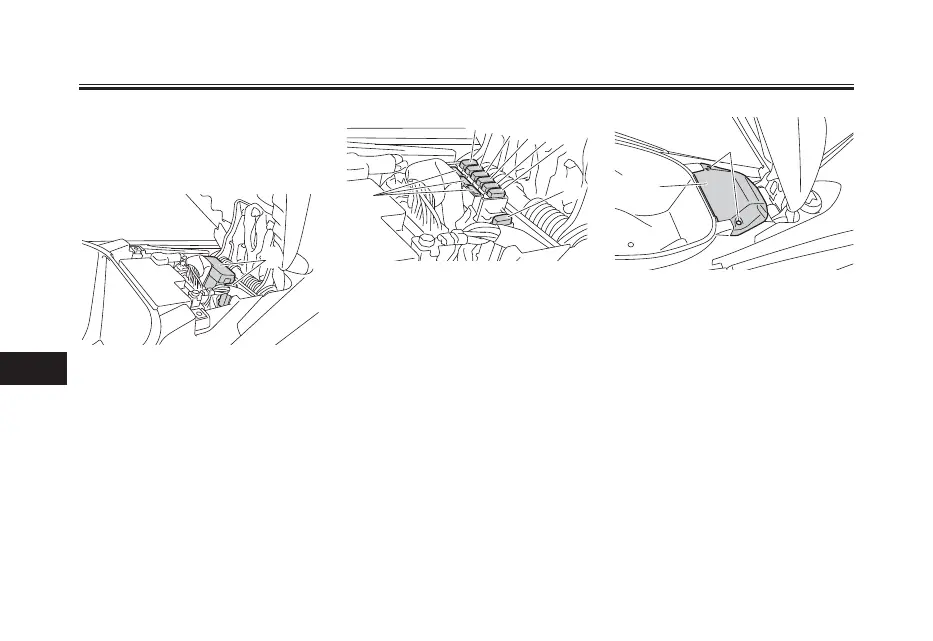

1. Fuse box
1. Main fuse 1
2. ABS solenoid fuse
3. Main fuse 2
4. Taillight fuse
5. Signaling system fuse
6. ABS control unit fuse
7. ABS motor fuse
8. Spare fuse
1. Battery cover
2. Screw
Replacing the fuses
The fuse boxes, which contain the fus-
es for the individual circuits, are locat-
ed under the seat. (See page 4-14.)
Turn the key to “OFF” and turn off
the electrical circuit in question.
Open the seat. (See page 4-14.)
Remove the battery cover by re-
moving the screws.
Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not use
a fuse of a higher amperage rat-
ing than recommended to avoid
causing extensive damage to the
electrical system and possibly a
fire.
1.
2.
3.
4.
