Yamaha NMAX - Replacing the Taillight Bulb

2
1
2
1
1
1
2
1
2
7
7-31
Periodic maintenance and adjustment
1. Grab bar
2. Bolt
1. Taillight cover
2. Screw
1. Quick fastener
1. Screw
2. Quick fastener
1. Screw
2. Quick fastener

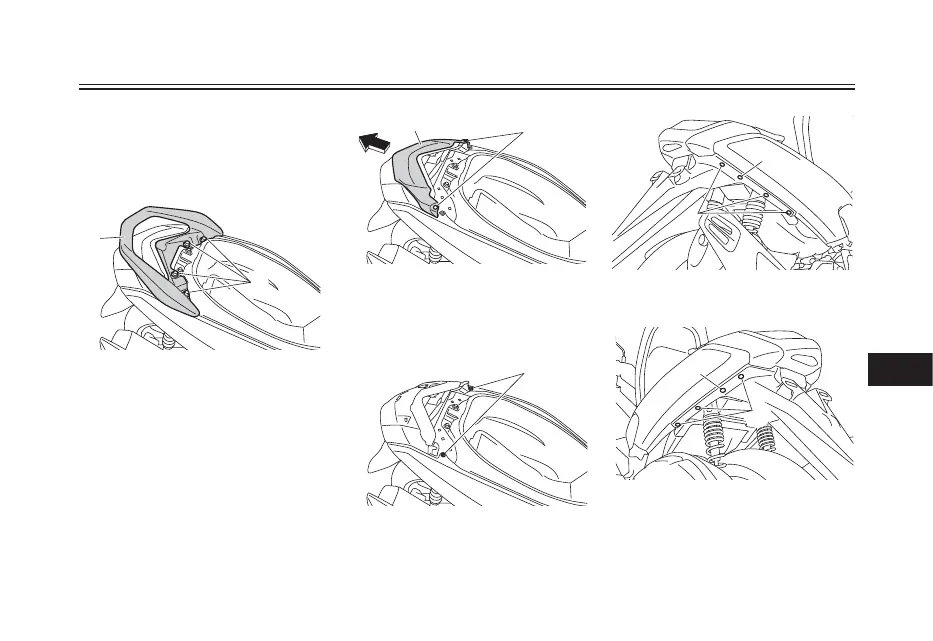

Replacing the taillight bulb
Open the seat. (See page 4-14.)
Remove the grab bar by removing
the bolts.
Remove the taillight cover by re-
moving the screws.
Remove the quick fasteners and
screws.
Pull the left and right side covers
slightly outward and pull the tail-
light unit rearward.
1.
2.
3.
4.
5.
