Periodic maintenance and adjustment

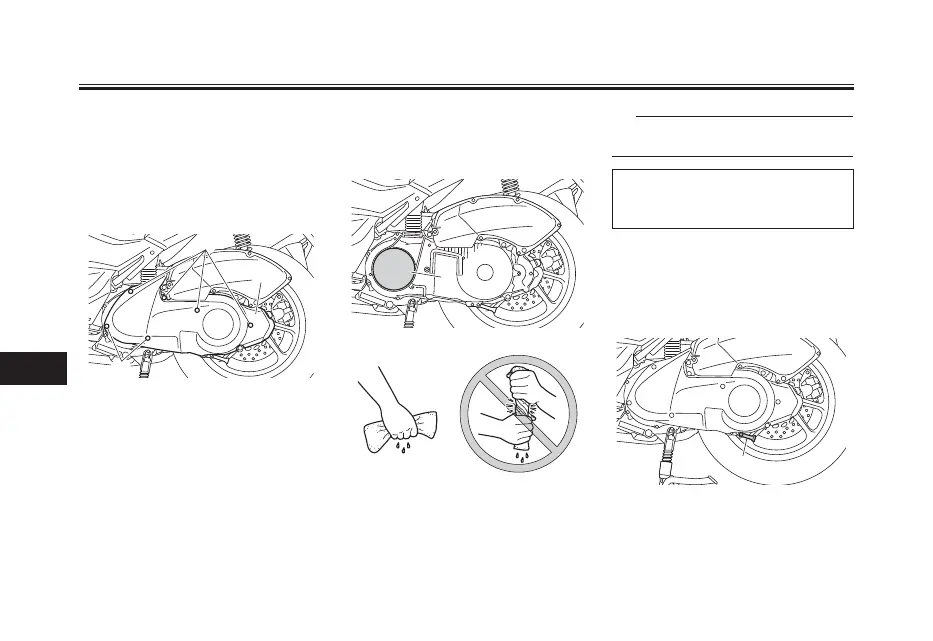

1. V-belt case air filter element cover
2. Screw
1. V-belt case check hose
1. V-belt case air filter element
Cleaning the V-belt case air filter el-
ement
Place the vehicle on the center-
stand.
Remove the screws, and then pull
the V-belt case air filter element
cover outward and away from the
V-belt case.
Pull the V-belt case air filter ele-
ment out, and then clean it with
solvent. After cleaning, remove the
remaining solvent by squeezing the
element. WARNING! Use only a
dedicated parts cleaning sol-
vent. To avoid the risk of fire or
explosion, do not use gasoline
or solvents with a low flash
1.
2.
3.
point. NOTICE: To avoid damag-
ing the air filter element, handle
it gently and carefully, and do
not twist it.
Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the
excess oil out.
4.
TIP
The air filter element should be wet but
not dripping.
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
Insert the element into the V-belt
case.
Install the air filter element cover by
installing the screws.
Cleaning the V-belt case check hose
Check the hose on the rear side of
the V-belt case for accumulated dirt
or water.
5.
6.
1.
