240 Chapter 19—Other Functions
01V96 Version 2—Owner’s Manual

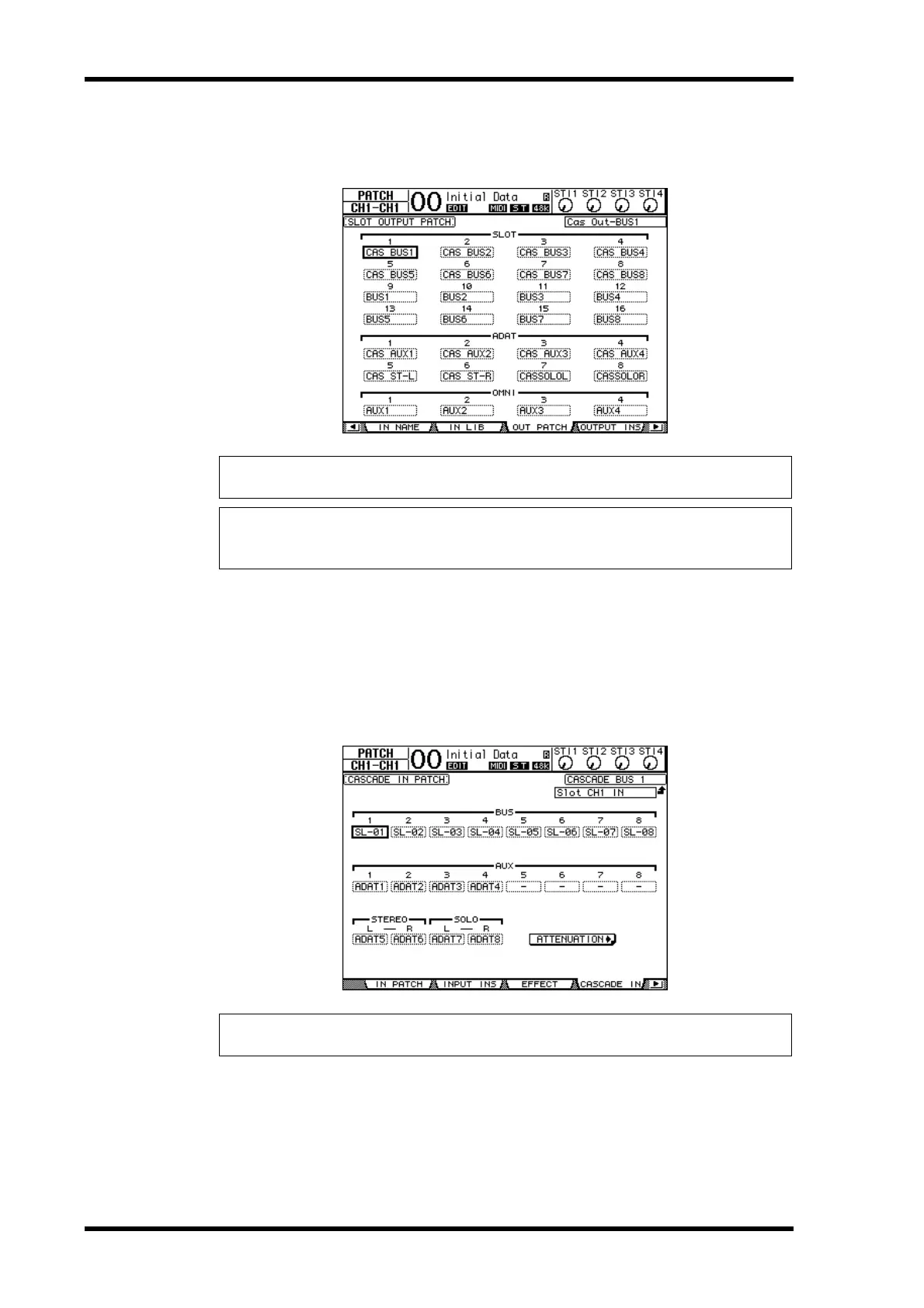

The following display page is an example of integrating Bus 1–8, Aux Send 1–4, Stereo Bus,
and Solo Bus signals via the ADAT IN and OUT connectors and two 8-channel digital I/O
cards (such as MY8-AT).
5 On the master unit, press the DISPLAY ACCESS [PATCH] button repeatedly
until the Patch | Cascade In page appears.
6 Select the Input Channels on the master unit to which the Bus signals are
input from the Slave unit.
The following display page is an example of receiving the slave unit’s Bus 1–8, Aux Send 1–4,
Stereo Bus, and Solo Bus signals via the ADAT IN and OUT connectors and two 8-channel
digital I/O cards (such as MY8-AT).
7 On the master unit, press the DISPLAY ACCESS [DIO/SETUP] button repeat-
edly until the DIO/Setup | Cascade page appears, then adjust the Attenua-
tors using the parameter controls.
The DIO/Setup | Cascade page enables you to adjust the level of signals input to the Cascade
Bus using the dedicated attenuators. You can also turn the Cascade Buses on or off using the
buttons below the parameter controls.
Tip: Patching may vary depending on the type and number of buses used for the cascade con-
nection.
Note: Since the number of channels available on the digital I/O card is limited, only Aux Sends
1–4 are cascaded in this example. Using a 16-channel digital I/O card (such as MY16-AT)
enables you to cascade all buses.
Note: Be sure to patch the slave Bus signals to the same Buses on the master unit. Incorrect
patching will result in an incorrect cascade connection.
