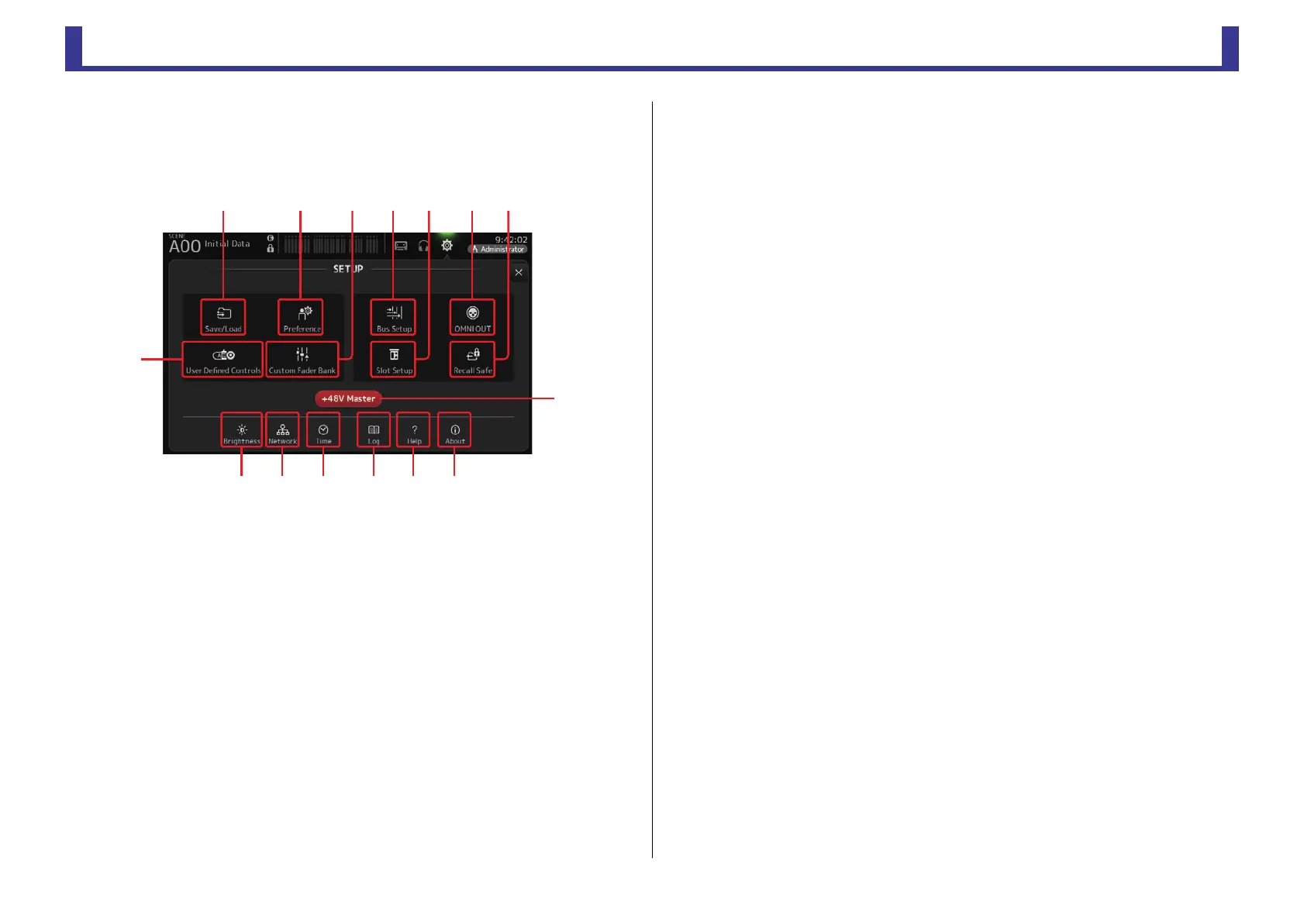

SETUP screen (V3.0 and later)
Allows you to configure general mixer settings, as well as settings for OMNI OUT, Recall Safe,
[USER DEFINED KEYS], [USER DEFINED KNOBS], custom fader banks, and other
preferences.
1 Bus Setup icon (page 22)
Displays the BUS SETUP screen.
2 OMNI OUT icon (page 22)
Displays the OMNI OUT screen.
3 Slot Setup icon (page 23) (V2.0 and later)
Displays the SLOT SETUP screen.
4 Recall Safe icon (page 24)
Displays the RECALL SAFE screen.
5 Save/Load icon (page 25)
Displays the SAVE/LOAD screen.
6 Preference icon (page 27)
Displays the PREFERENCE screen.
7 User Defined Control icon (page 29)
Displays the USER DEFINED CONTROLS screen.
8 Custom Fader Bank icon (page 33)
Displays the CUSTOM FADER BANK screen.
9 +48V Master button
Master button that turns the console's phantom power feature on and off. When this
button is turned off, phantom power will not be supplied to any channels, even if their
+48V buttons are turned on. (page 46)
0 Brightness icon (page 34)
Displays the BRIGHTNESS screen.
A Network icon (page 35)
Displays the NETWORK screen.
B Time icon (page 36)
Displays the TIME screen.
C Log icon (page 36)
Displays the LOG screen.
D Help icon (page 37)
Displays the HELP screen.
E About icon (page 37)
Displays the ABOUT screen.
