Yamaha RACK - SEND to AUX Screen

Configuration screens
Reference Manual
TF Series
- 61 -
PING PONG DELAY (V2.0 and later)
One-input, two-output ping pong delay. The delayed sound alternates between left and right
at equal intervals.
DUAL PITCH (V2.0 and later)
Two-input, two-output pitch-shift effect.
OUTPUT DELAY (V2.5 and later)
Two-input, two-output single delay. When used for INS FX 1–6, this delay is good for delay
compensation.

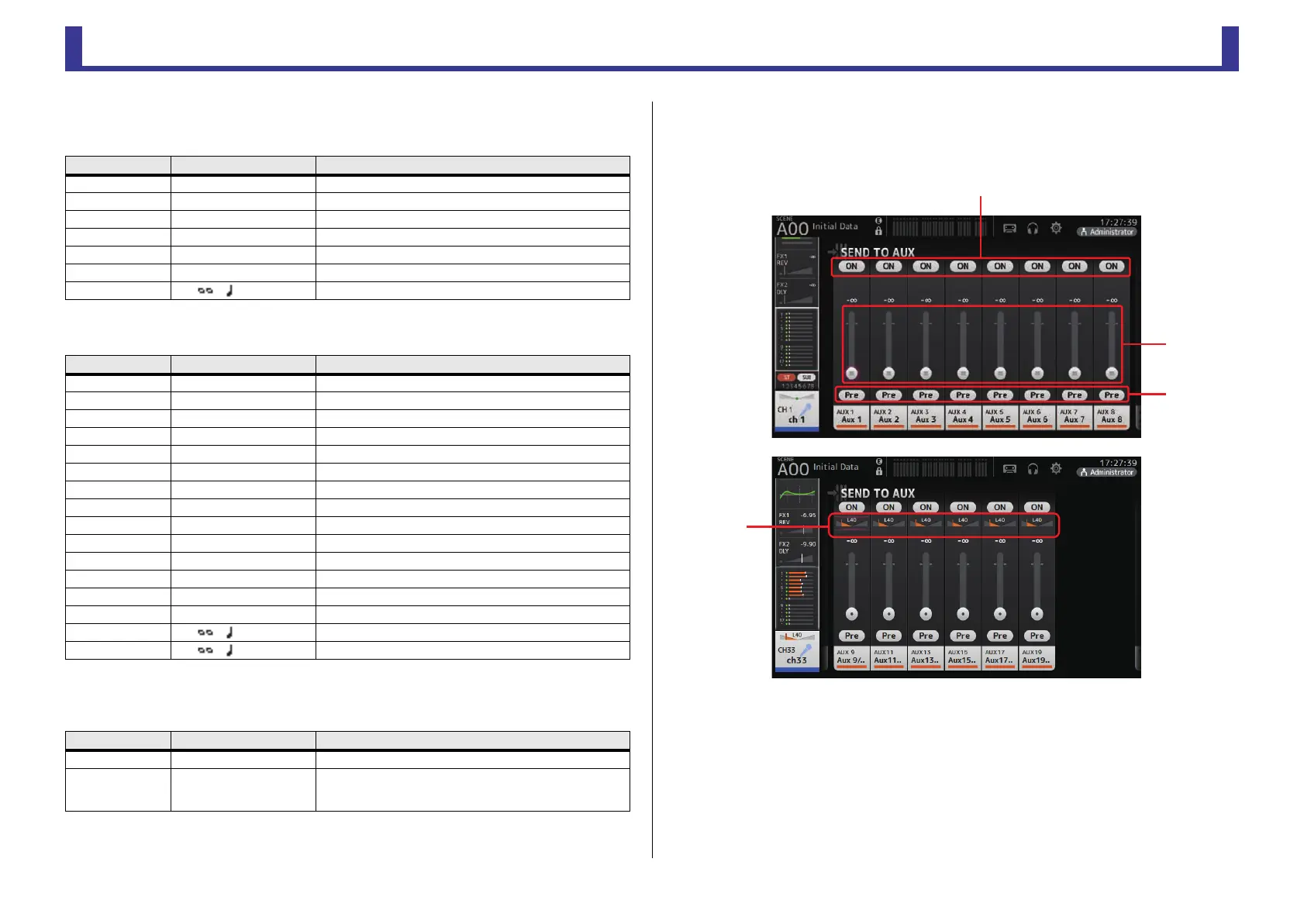

SEND TO AUX screen
Allows you to configure the amount of signal that is sent from each channel to the AUX buses.
You can swipe left and right to view other buses.
1 Send button
Determines whether a signal is sent (on) or not sent (off) to the corresponding AUX bus.
2 Send level slider
Determines the amount of signal sent to the corresponding AUX bus.
Parameter Range Description
Delay 1.0ms - 1350.0ms Delay time.
Feedback Gain -99% - 99% Amount of feedback.
High Ratio 0.1 - 1.0 Amount of high-frequency feedback.
HPF Thru, 21.2Hz - 8.00kHz High-pass filter cutoff frequency.
LPF 50.0Hz - 16.0kHz, Thru Low-pass filter cutoff frequency.
Sync Off, On Parameter tempo sync.
Note ----, - Value used to calculate the delay time based on the tempo.
Parameter Range Description
Pitch 1 -24 - 24 Pitch of Ch1 (semitone increments).
Fine 1 -50 - 50 Pitch of Ch1 (1 cent increments).
Level 1 -100 - 100 Volume of Ch1.
Pan 1 L63 - R63 Pan of Ch1.
Delay 1 1.0ms - 1000.0ms Delay time of Ch1.
Feedback Gain 1 -99 - 99 Feedback level of Ch1.
Pitch 2 -24 - 24 Pitch of Ch2 (semitone increments).
Fine 2 -50 - 50 Pitch of Ch2 (1 cent increments).
Level 2 -100 - 100 Volume of Ch2.
Pan 2 L63 - R63 Pan of Ch2.
Delay 2 1.0ms - 1000.0ms Delay time of Ch2.
Feedback Gain 2 -99 - 99 Feedback level of Ch2.
Mode 1 - 10 Width of pitch shift.
Sync Off, On Parameter tempo sync.
Note 1 ----, - Value used to calculate Delay 1 based on the tempo.
Note 2 ----, - Value used to calculate Delay 2 based on the tempo.
Parameter Range Description
LR LINK On, Off Links the left and right delays.
Delay
0.3 – 343.6 meter
1.1 – 1127.3 feet
1.00 – 1000.00ms
You can specify the delay time in meters, feet, or milliseconds.
ձ
ղ
ճ
մ
