Features that can be assigned to the footswitch

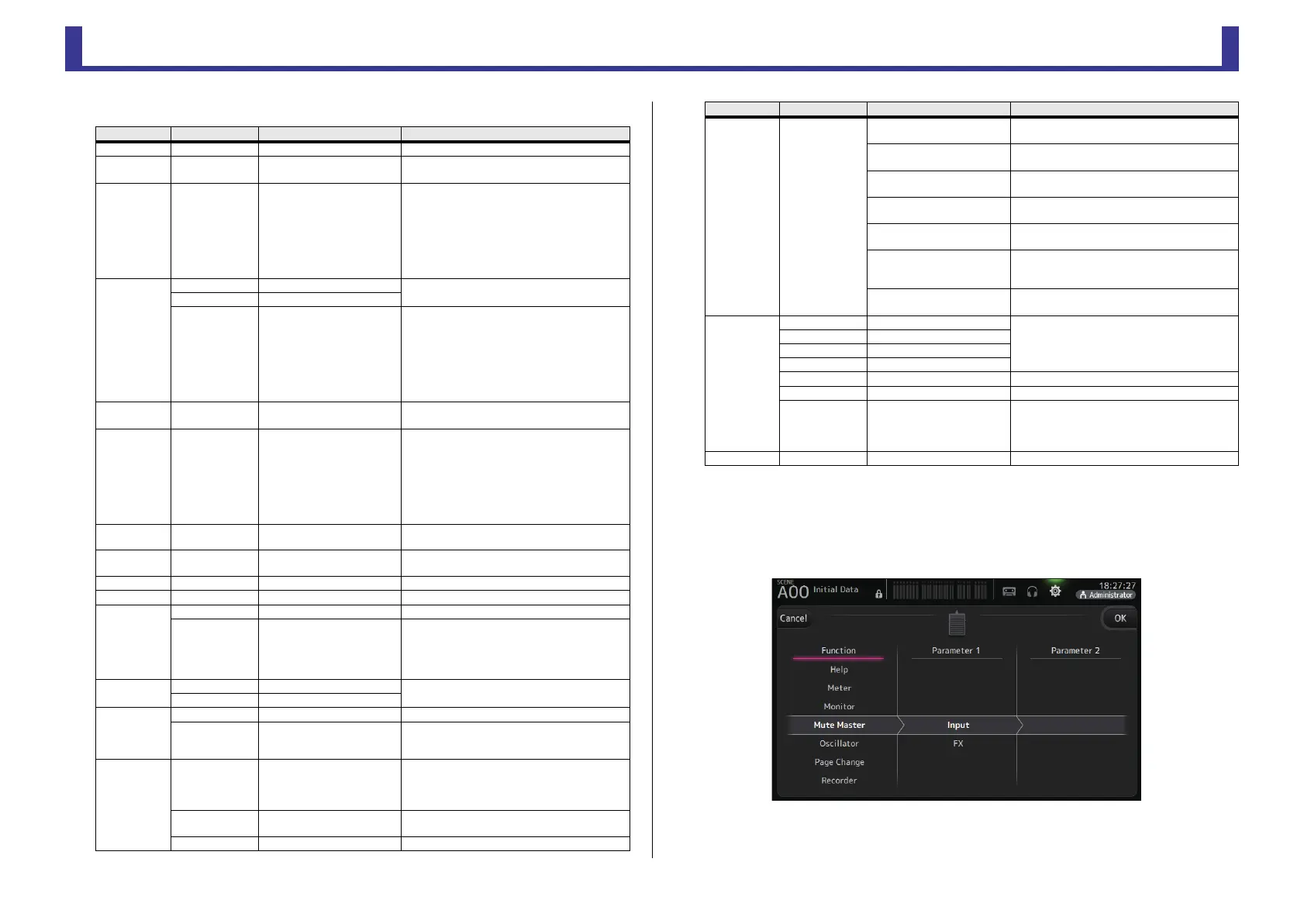

Feature assignment screen
When you select a Function, the items available for Parameter 1 are displayed. Likewise,
when you select an item for Parameter 1, the items available for Parameter 2 are
displayed. Some Functions may not have items available for Parameter 1; some
Parameter 1 items may not have items available for Parameter 2.
FUNCTION PARAMETER1 PARAMETER2
Description
No Assign No feature is assigned
Brightness Bank Change
Switches the brightness setting bank. This
feature is supported from V1.1.
CH ON Specific CH
CH 1–40,
ST IN 1, ST IN 2,
FX 1, FX 2,
DCA 1–8,
AUX 1–8,
AUX 9/10–19/20,
STEREO, SUB
MATRIX1–4 (V2.5 and later)
Turns the channel assigned to PARAMETER 2
on and off.
CH Select
Inc
Select channels in order of the direction
selected for PARAMETER 1.
Dec
Specific CH
CH 1–40,
ST IN 1L–ST IN 2R,
FX1L–FX2R,
AUX 1–8,
AUX 9–20,
STEREO L, STEREO R,
SUB
MATRIX1–4 (V2.5 and later)
Selects the channel assigned to
PARAMETER 2.
Clear Cue
Clears all cue selections.
Same as the CLEAR CUE key on the top panel.
CUE Specific CH
CH 1–40,
ST IN 1, ST IN 2,
FX 1, FX 2,
DCA 1–8,
AUX 1–8,
AUX 9/10–19/20,
STEREO, SUB
MATRIX1–4 (V2.5 and later)
Turns the cue on and off for the channel
assigned to PARAMETER 2.
Effect Bypass
FX 1, FX 2,
INS FX 1–6
Bypasses the effect assigned to PARAMETER 2.
EQ Band Select
HP F, L PF, Lo w, Low -M id,
High-Mid, High
Selects the band assigned to PARAMETER 2.
(V3.0 and later)
Help Displays help information.
Meter Peak Hold ON Turns the peak hold on and off.
Monitor
Output Turns the monitor out on and off.
Source Select
STEREO, SUB,
ST IN 1, ST IN 2,
STIN (TF-RACK),
USB 33/34,
Playback
Selects the monitor source assigned to
PARAMETER 2.
Mute Master
Input
Same as the corresponding MUTE key on the
top panel.
FX
Oscillator
Oscillator On Turns the oscillator on and off.
Specific CH
AUX 1–20,
STEREO L, STEREO R,
SUB
Turns the oscillator sent to the channel
assigned to PARAMETER 2 on and off.
Page Change
Bookmark
Press and hold for more than 2 seconds to
bookmark the current screen. Press and hold
for less than two seconds to display the
bookmarked screen.
Bookmark with
“SEL”
The selected channel is saved with the
bookmark. Same as above.
Close Popup Closes the popup screen.
Recorder Transport
Play/Pause
Same as the Play/Pause button on the
RECORDER screen.
Stop
Same as the Stop button on the RECORDER
screen.
Next
Same as the Next button on the RECORDER
screen.
Previous
Same as the Previous button on the
RECORDER screen.
Rec
Same as the Rec button on the RECORDER
screen.
Auto Rec
Recording stops and the file is saved, and
then recording resumes immediately as a new
file.
Rec & Start
Recording starts immediately without
entering record-ready mode.
SCENE
Inc
Same as the INC, DEC, STORE, and RECALL
keys.
Dec
Store
Recall
Inc Recall Recalls the next numbered Scene.
Dec Recall Recalls the previous numbered Scene.
Direct Recall/
Store
A00–99,
B00–99
Recalls the Scene number assigned to
PARAMETER 2. Press and hold for more than
two seconds to assign the current settings to
that Scene number.
TAP TEMPO Same as the TAP key on the top panel.
FUNCTION PARAMETER1 PARAMETER2
Description
To Next Page
