TRANSMISSION (YUM1A/YUM2A)
7-9

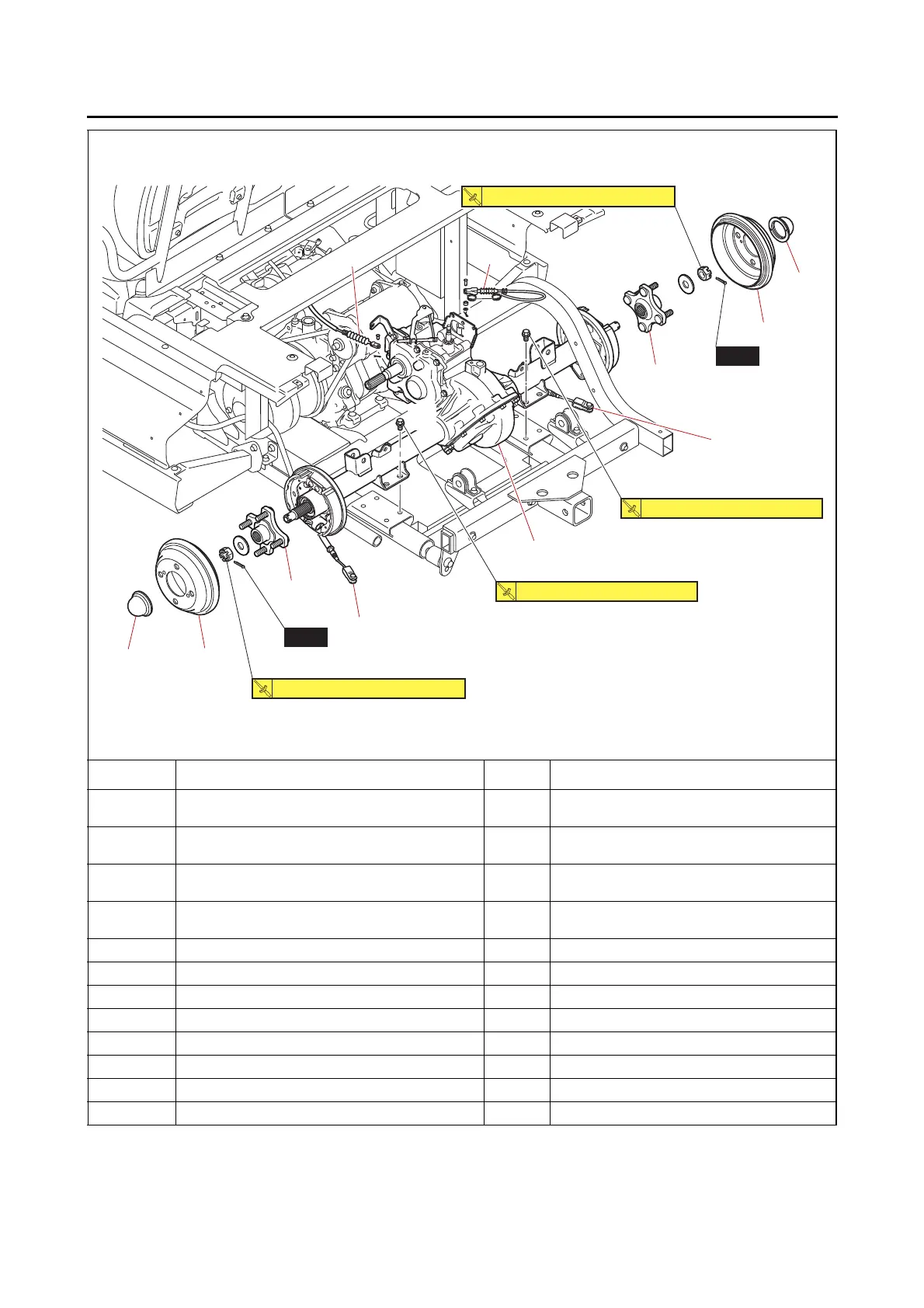

Removing the transmission assembly
Order Job/Parts to remove Q’ty Remarks
Secondary sheave
Refer to “PRIMARY AND SECONDARY
SHEAVE (YUM1A/YUM2A)” on page 7-1.
Rear wheel
Refer to “FRONT AND REAR WHEELS” on
page 4-16.
Rear shock absorber
Refer to “REAR SUSPENSION COMPO-
NENTS” on page 4-36.
Rear stabilizer
Refer to “REAR SUSPENSION COMPO-
NENTS” on page 4-36.
1 Throttle cable 1 1 Disconnect.
2 Throttle cable 2 1 Disconnect.
3Dust cover 2
4 Brake drum 2
5 Rear wheel hub 2
6 Rear brake cable (left) 1 Disconnect.
7 Rear brake cable (right) 1 Disconnect.
8 Rear axle assembly 1
3
4
5
6
3
4
5
7
(4)
(4)
8
2
1
New
New
210 N
•
m (21 kgf
•
m, 155 lb
•
ft)
T
.R.
73 N
•
m (7.3 kgf
•
m, 54 lb
•
ft)
T.R.
73 N
•
m (7.3 kgf
•
m, 54 lb
•
ft)
T.R.
210 N
•
m (21 kgf
•
m, 155 lb
•
ft)
T
.R.
