Yamaha UMX - Assembling the Traction Motor

TRACTION MOTOR (YUM2E)
7-18

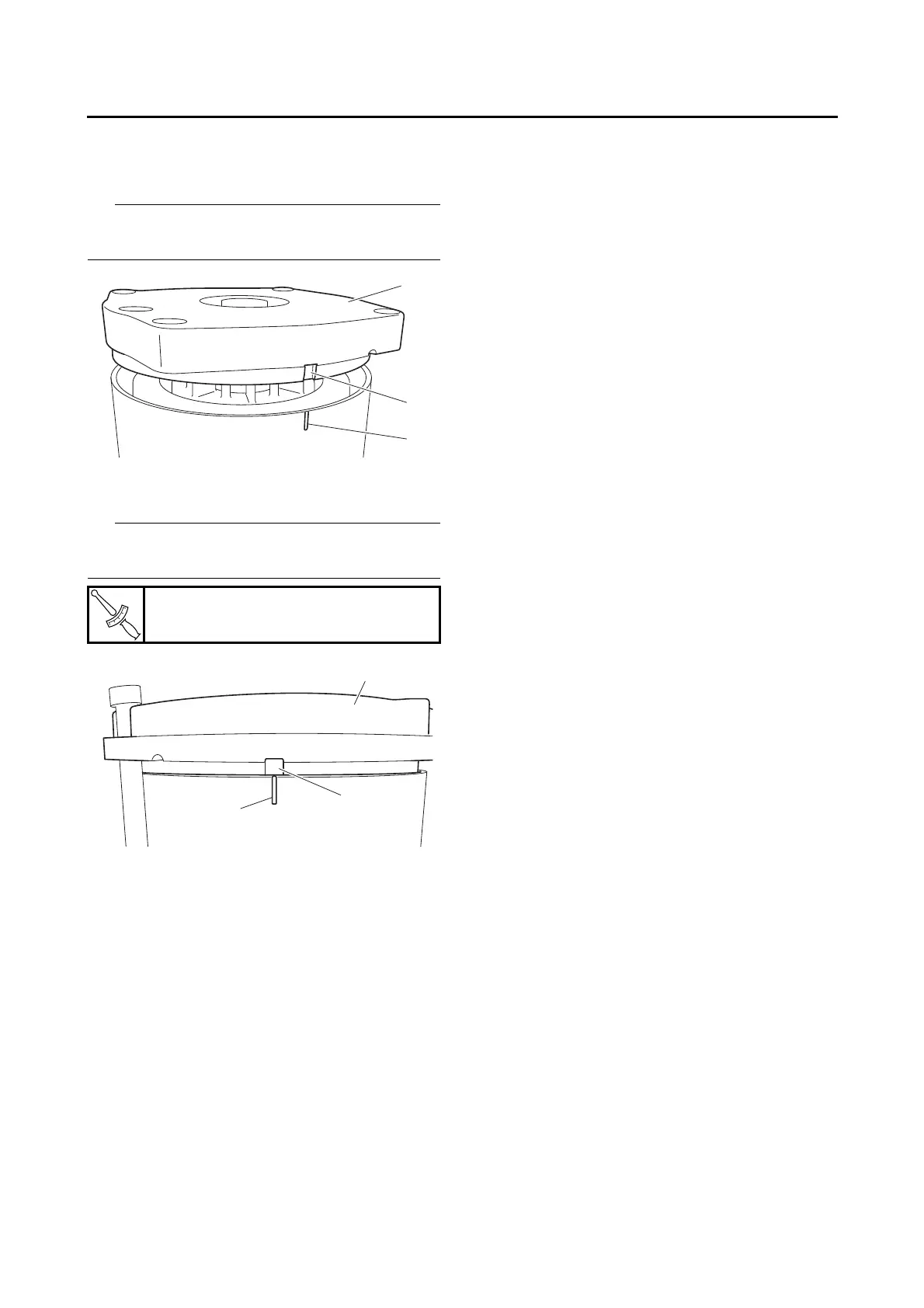

ASSEMBLING THE TRACTION MOTOR
1. Install:
• End bracket “1”
TIP
Align the match mark “a” on the stator with the
slot “b” on the end bracket.
2. Install:
• Front bracket “1”
TIP
Align the match mark “a” on the stator with the
slot “b” on the front bracket.
T
R
.
.
Traction motor bracket bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
b
a
1
b
a
1
