TRANSMISSION (YUM1A/YUM2A)
7-8
TRANSMISSION (YUM1A/YUM2A)

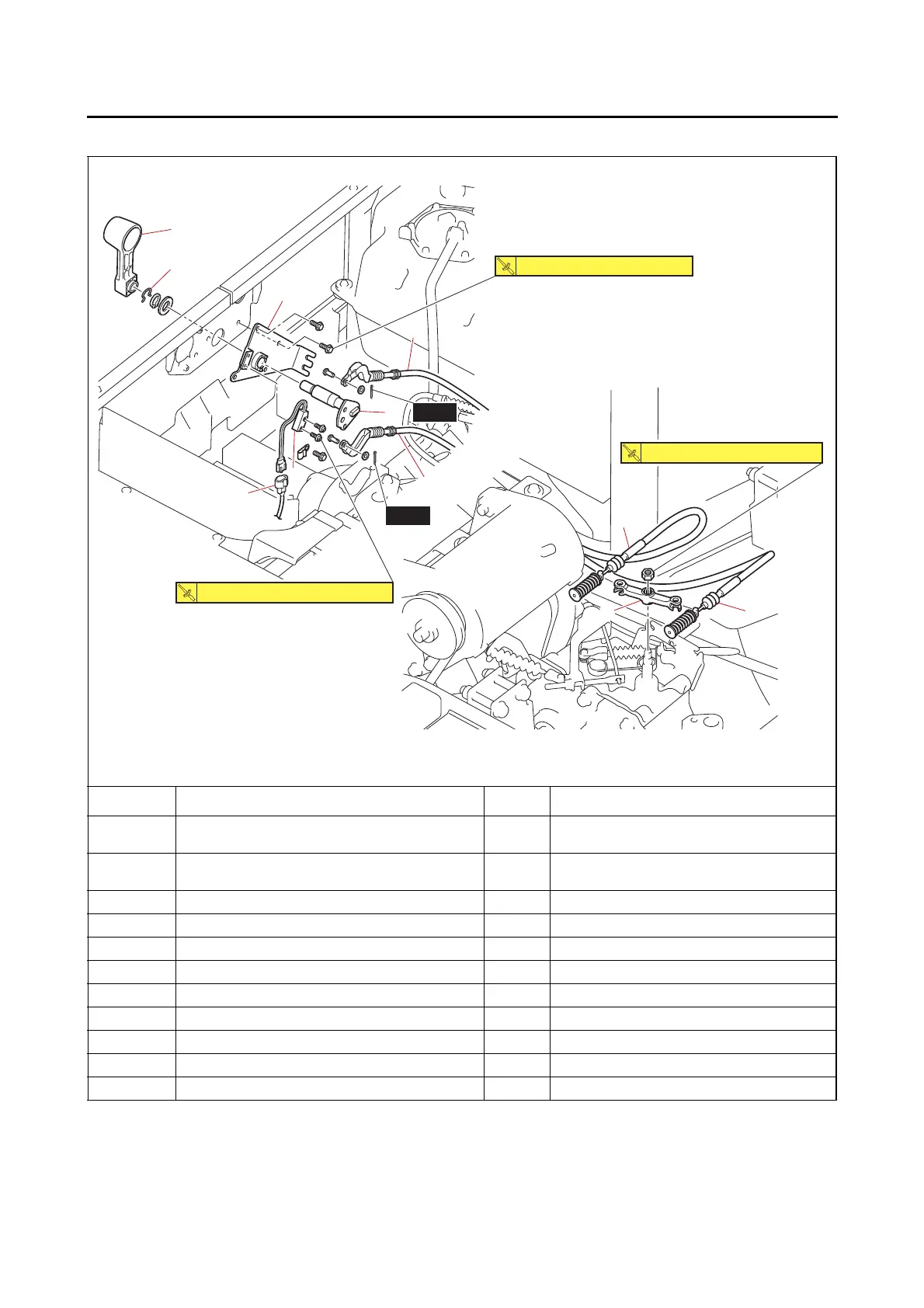

Removing the shift lever and shift cables
Order Job/Parts to remove Q’ty Remarks
Seat frames (driver and passenger)
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Cargo bed
Refer to “GENERAL CHASSIS (2)” on page
4-3.
1 Shift cable (forward) 1
2 Shift cable (reverse) 1
3 Equalizer bracket 1
4 Clip 1
5 Shift lever 1
6 Reverse switch coupler 1 Disconnect.
7 Reverse switch 1
8 Shift lever shaft 1
9 Shift cable bracket 1
5
4
9
1
1
8
2
2
3
7
6
New
New
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
16 N
•
m (1.6 kgf
•
m, 12 lb
•
ft)
T.R.
2.0 N
•
m (0.20 kgf
•
m, 1.5 lb
•
ft)
T.R
.
