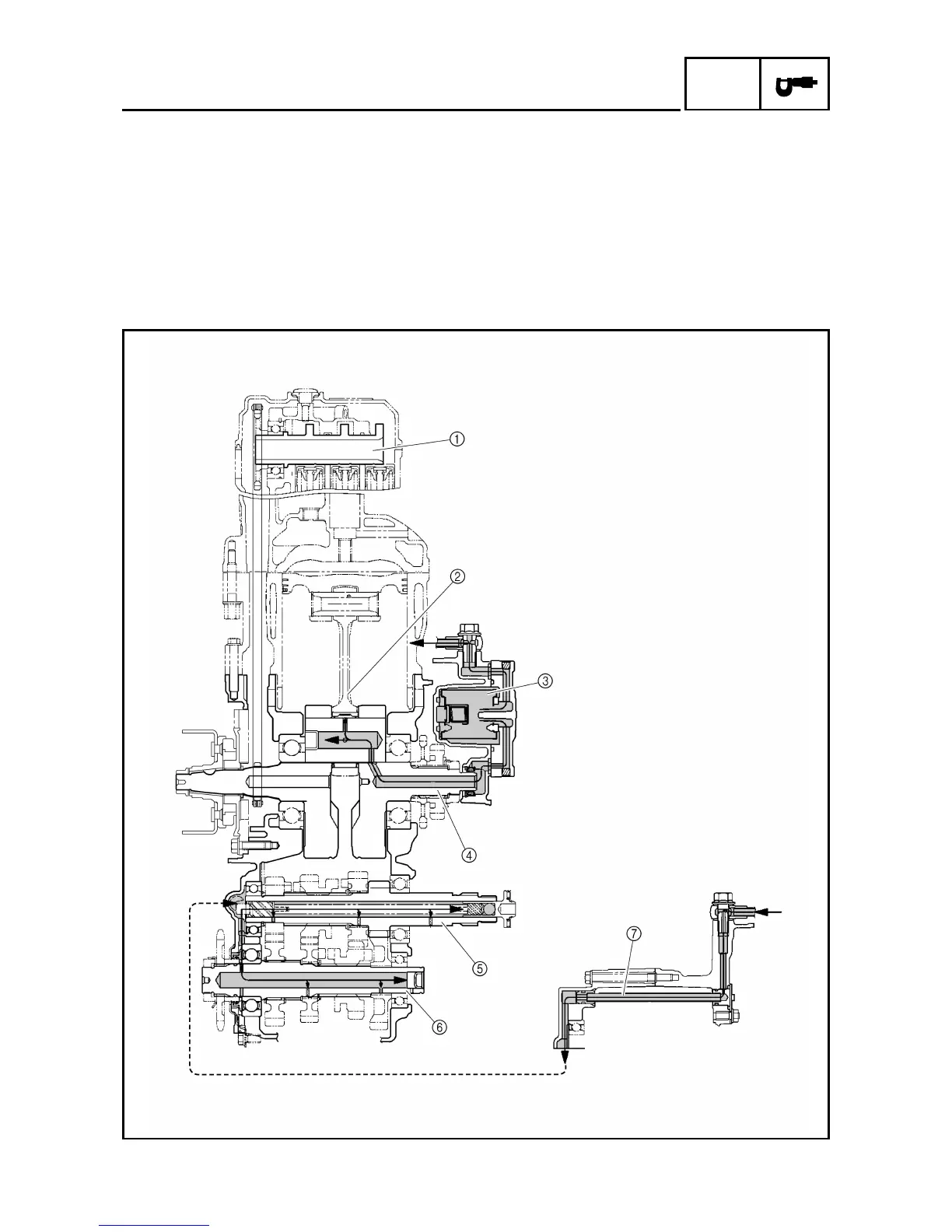

LUBRICATION DIAGRAMS
1
Camshaft
2
Connecting rod
3
Oil cleaner element
4
Crankshaft
5
Main axle
6
Drive axle
7
Oil delivery pipe
