4 - 51
ENG
CLUTCH
CLUTCH
CLUTCH
Extent of removal:
1
Push rod and push lever removal
2
Push pod 1 disassembly
3
Friction plate and clutch plate removal
4
Clutch housing removal
Extent of removal Order Part name Q’ty Remarks

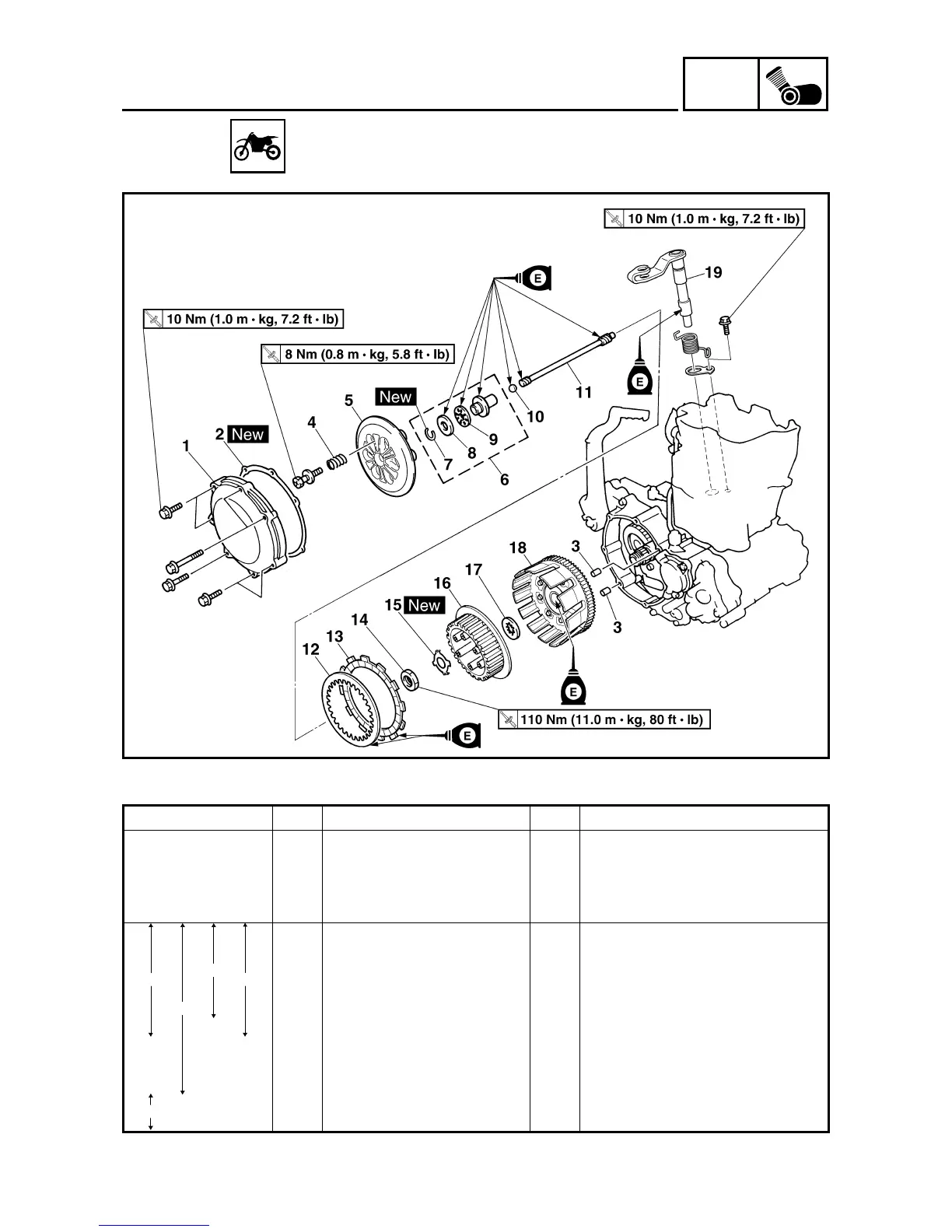

CLUTCH REMOVAL
Preparation for removal Drain the engine oil. Refer to “ENGINE OIL REPLACEMENT”
section in the CHAPTER 3.
Brake pedal Refer to “ENGINE REMOVAL” section.
Clutch cable Disconnect at engine side.
1 Clutch cover 1
2 Gasket 1
3 Dowel pin 2
4 Clutch spring 6
5 Pressure plate 1
6 Push rod 1 1
7 Circlip 1
8 Plain washer 1
9 Bearing 1
10 Ball 1
11 Push rod 2 1
1
2
3
4
1
To Next Page
