Yamaha WR450F(T) - Chassis; Front Wheel and Rear Wheel

5 - 1
CHAS
EC500000
CHASSIS
EC590000
FRONT WHEEL AND REAR WHEEL
EC598000

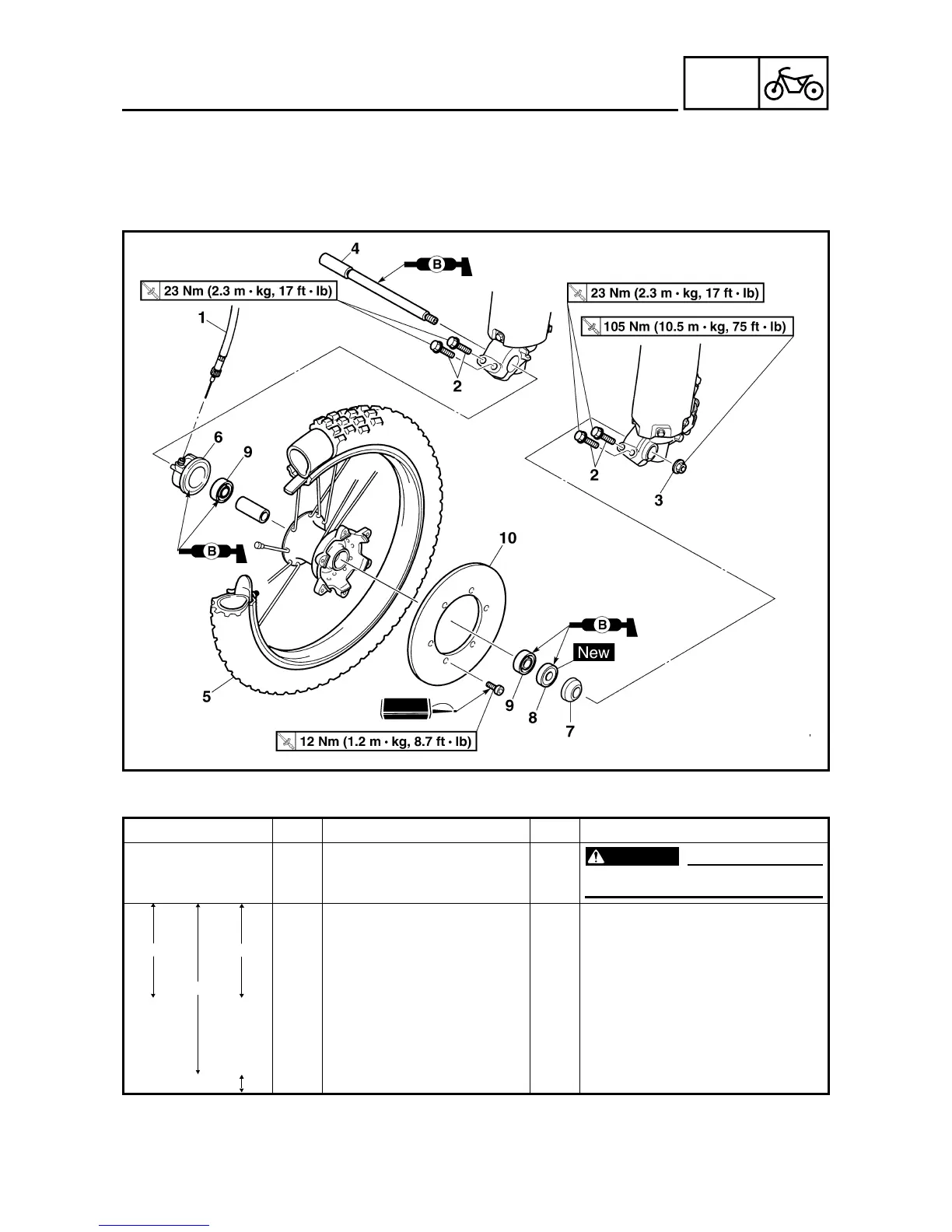

FRONT WHEEL
FRONT WHEEL AND REAR WHEEL
Extent of removal:
1
Front wheel removal
2
Wheel bearing removal
3
Brake disc removal
Extent of removal Order Part name Q’ty Remarks
FRONT WHEEL REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
1 Trip meter cable 1
2 Bolt (axle holder) 4 Only loosening.
3 Nut (front wheel axle) 1
4 Front wheel axle 1
5 Front wheel 1
6 Trip meter gear unit 1
7 Collar 1
8 Oil seal 1
9 Bearing 2 Refer to “REMOVAL POINTS”.
10 Brake disc 1
2
1
3
3
