CYLINDER AND PISTON
CYLINDER AND PISTON
CYLINDER AND PISTON
Extent of removal:
1
Cylinder re
moval
2
Piston removal
Extent of removal
Order
Part name
Q
’
ty
Remarks

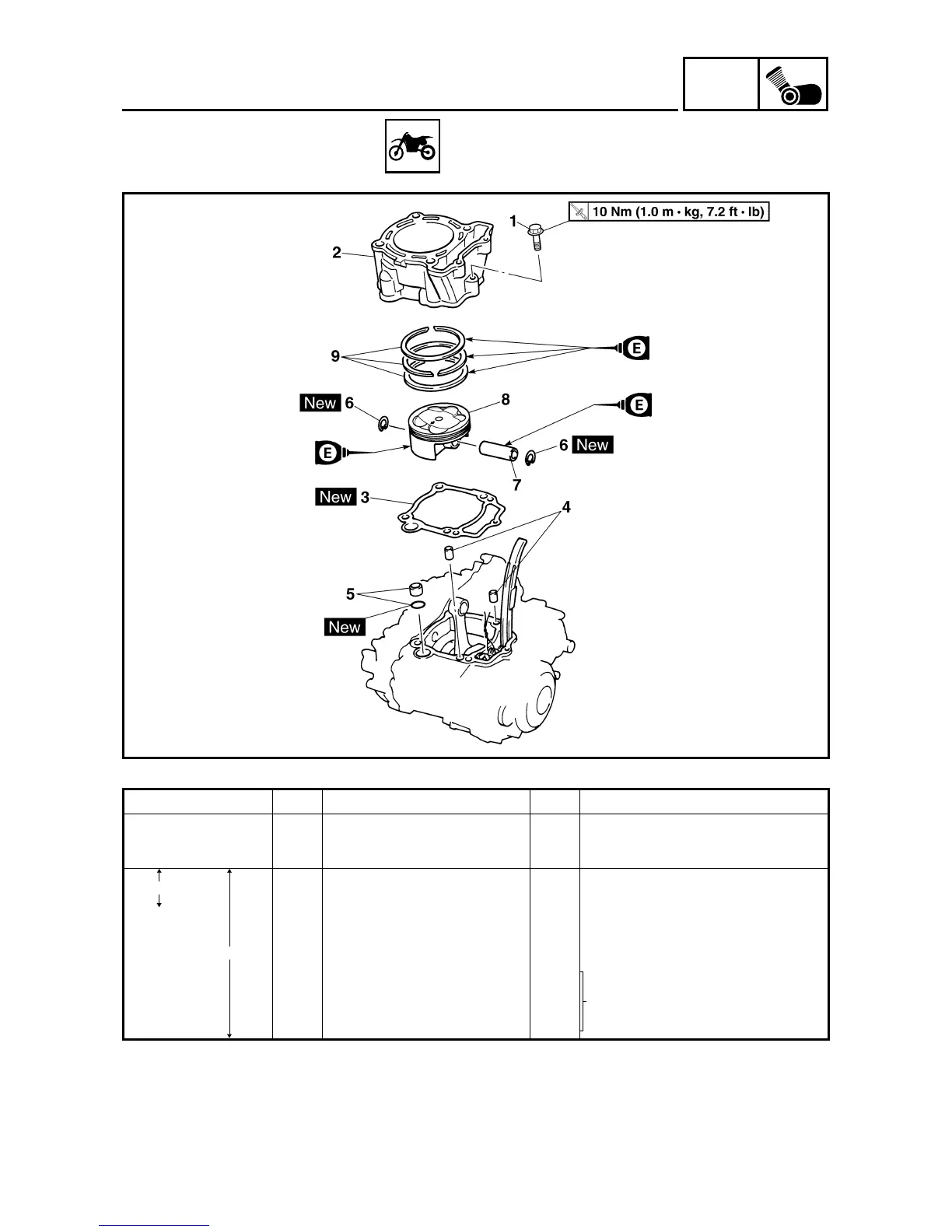

CYLINDER AND PISTON
REMOVAL
Preparation for removal
Cylinder head
Refer to
“
CYLINDER HEAD
”
section.
1
Bolt (cylinder)
1
2
Cylinder
1
3
Gasket
1
4
Dowel pin
2
5
Dowel pin/O-ring
1/1
6
Piston pin clip
2
Use special tool.
Refer to
“
REMOVAL POINTS
”.
7
Piston pin
1
8P
i
s
t
o
n
1
9
Piston ring set
1
1
2
