4 - 65
ENG
BALANCER
BALANCER
BALANCER
Extent of removal:
1
Balancer drive gear
2
Balancer
Extent of removal Order Part name Q’ty Remarks

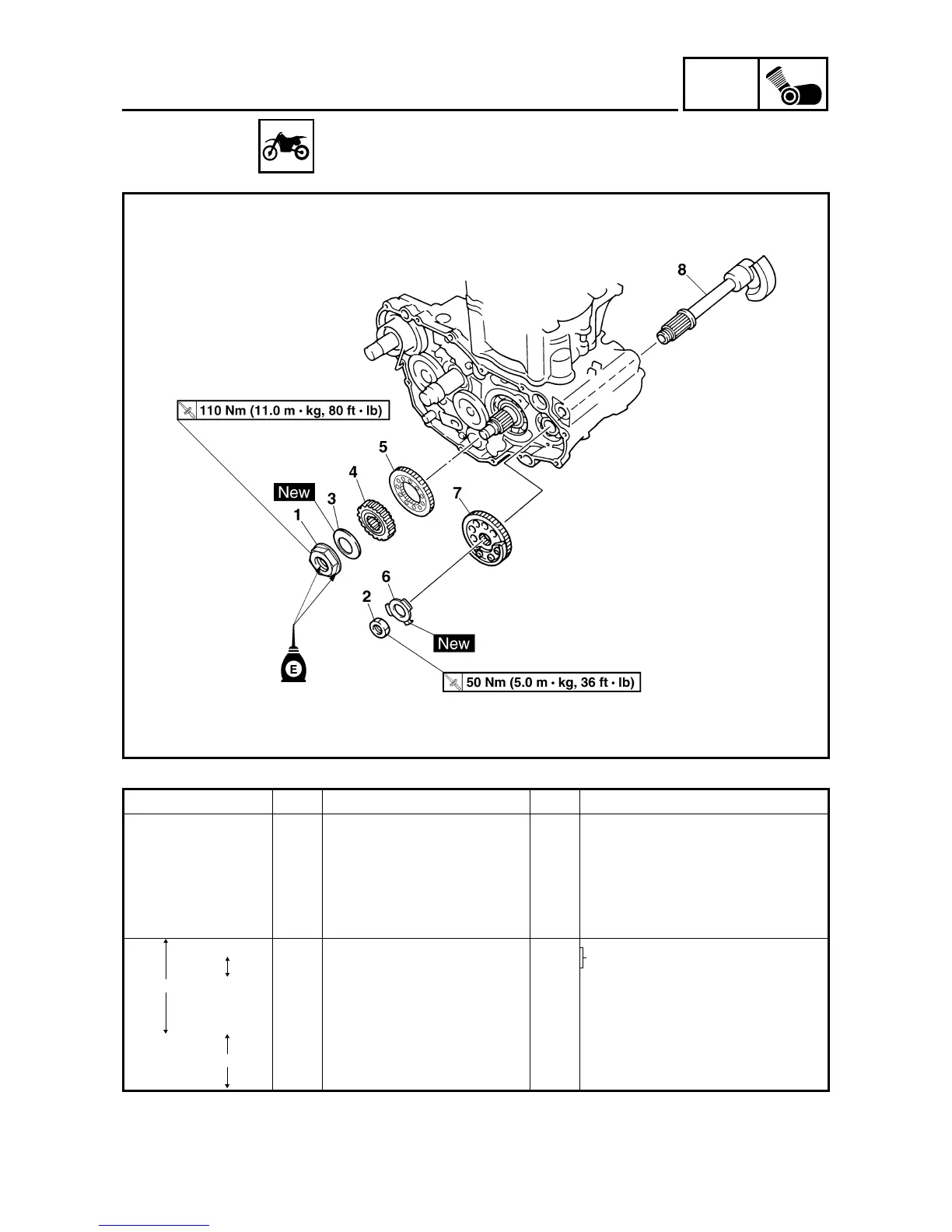

BALANCER REMOVAL
Preparation for removal Clutch housing Refer to “CLUTCH” section.
Crankcase cover (right) Refer to “OIL FILTER, WATER PUMP
AND CRANKCASE COVER (RIGHT)”
section.
Stator Refer to “AC MAGNETO AND
STARTER CLUTCH” section.
1 Nut (primary drive gear) 1
Refer to “REMOVAL POINTS”.
2 Nut (balancer) 1
3 Conical washer 1
4 Primary drive gear 1
5 Balancer drive gear 1
6 Lock washer 1
7 Balancer driven gear 1
8 Balancer 1 Refer to “REMOVAL POINTS”.
1
2
2
