3 - 29
INSP
ADJ

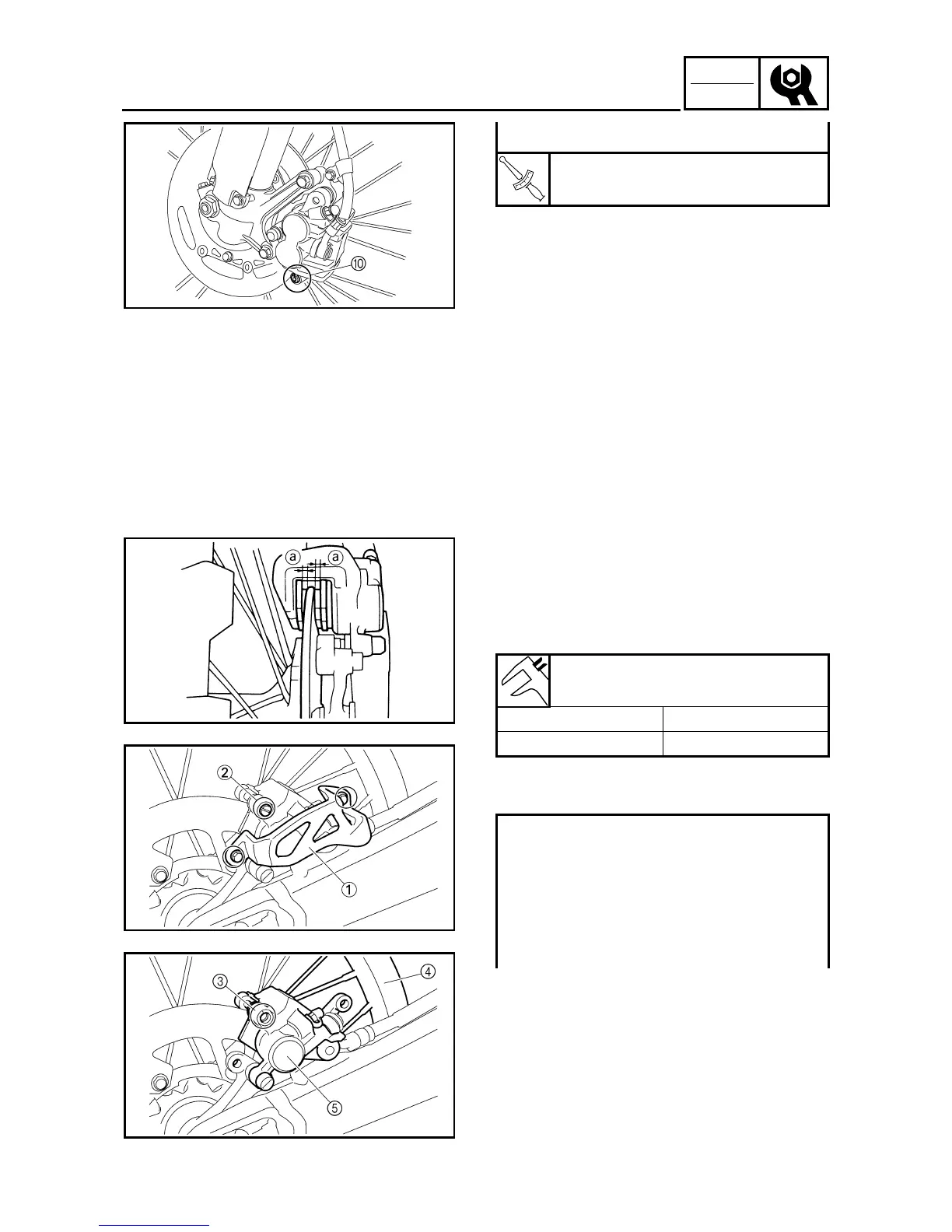

REAR BRAKE PAD INSPECTION AND REPLACEMENT
• Install the pad pin plug 0.
T
R
.
.
Pad pin plug:
3 Nm (0.3 m • kg, 2.2 ft • lb)
3. Inspect:
• Brake fluid level
Refer to “BRAKE FLUID LEVEL INSPEC-
TION” section.
4. Check:
• Brake lever operation
A softy or spongy feeling → Bleed brake
system.
Refer to “BRAKE SYSTEM AIR BLEED-
ING” section.
EC366060
REAR BRAKE PAD INSPECTION AND
REPLACEMENT
1. Inspect:
• Brake pad thickness a
Out of specification → Replace as a set.
2. Replace:
• Brake pad
Brake pad thickness
a
:
Standard <Limit>
6.4 mm (0.25 in) 1.0 mm (0.04 in)
Brake pad replacement steps:
• Remove the protector 1 and pad pin plug
2.
• Loosen the pad pin 3.
• Remove the rear wheel 4 and caliper 5.
Refer to “FRONT WHEEL AND REAR
WHEEL” section in the CHAPTER 5.
To Next Page
