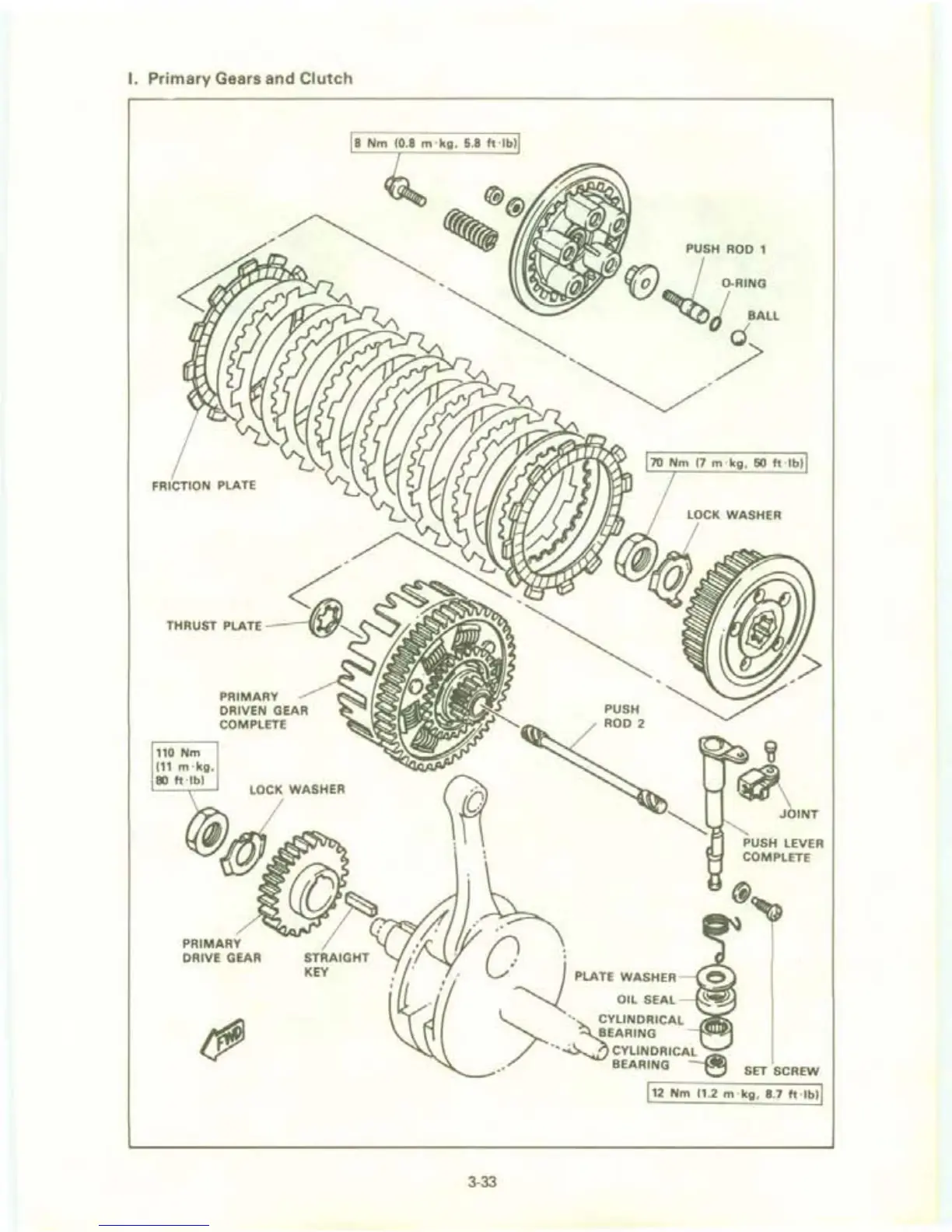

I.
Primary
Gears
and
Clutch
THRUST PLATE
110
Nm
(11
m
·kg,
80
ft-lb)
PRIMARY
DRIVEN
GEAR
COMPLETE
LOCK WASHER
PRIMARY
DRIVE
GEAR
PUSH ROD 1
3-33
