5.

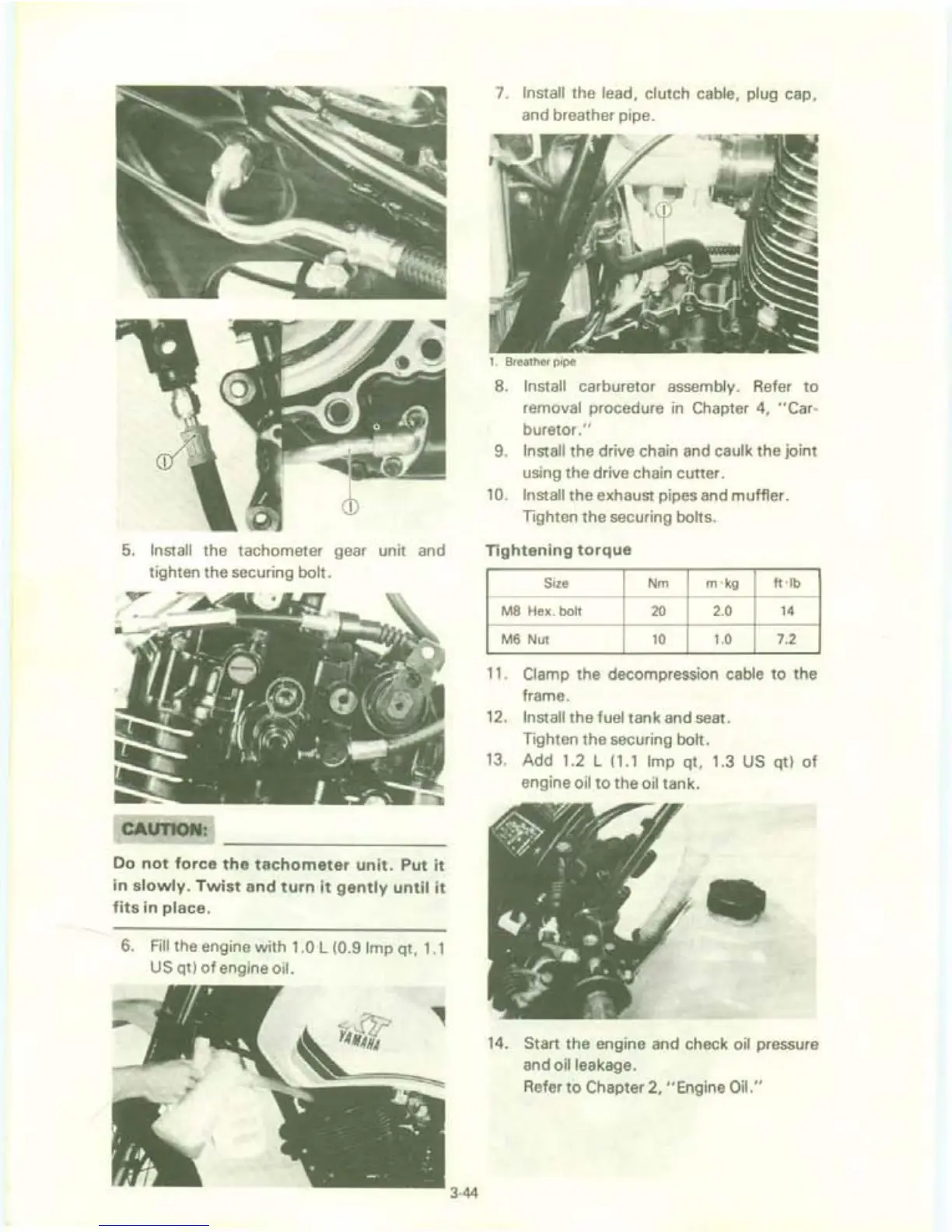

Install the tachometer gear unit and
tighten the securing
bolt.
~
Do
not
force
the
tachometer
unit.
Put
it
in
slowly.
Twist
and
turn
it
gently
until
it
fits
in
place.
6.
Fill
the engine with 1.0 L (0.9 Imp qt,
1.1
US
qt)
of
engine oil.
3-44
7. Install the lead, clutch cable, plug cap,
and breather pipe.
1. Breather pipe
8.
Install carburetor assembly. Refer
to
removal procedure
in
Chapter
4,
"Car-
buretor."
9.
Install the drive chain and caulk the joint
using the drive chain cutter.
10
. Install the exhaust pipes and muffler.
Tighten the securing bolts.
Tightening
torque
Size
Nm m '
kg
ft-lb
M8 Hex. bolt
20
2.0
14
M6 Nut
10
1.0
7.2
11.
Clamp the decompression cable
to
the
frame.
12
. Install the fuel tank and seat.
Tighten the securing
bolt.
13.
Add 1.2 L
(1
.1 Imp qt, 1.3 US qt)
of
engine oil
to
the oil tank.
14.
Start the engine and check oil pressure
and
oil leakage.
Refer
to
Chapter 2, "Engine Oil."
