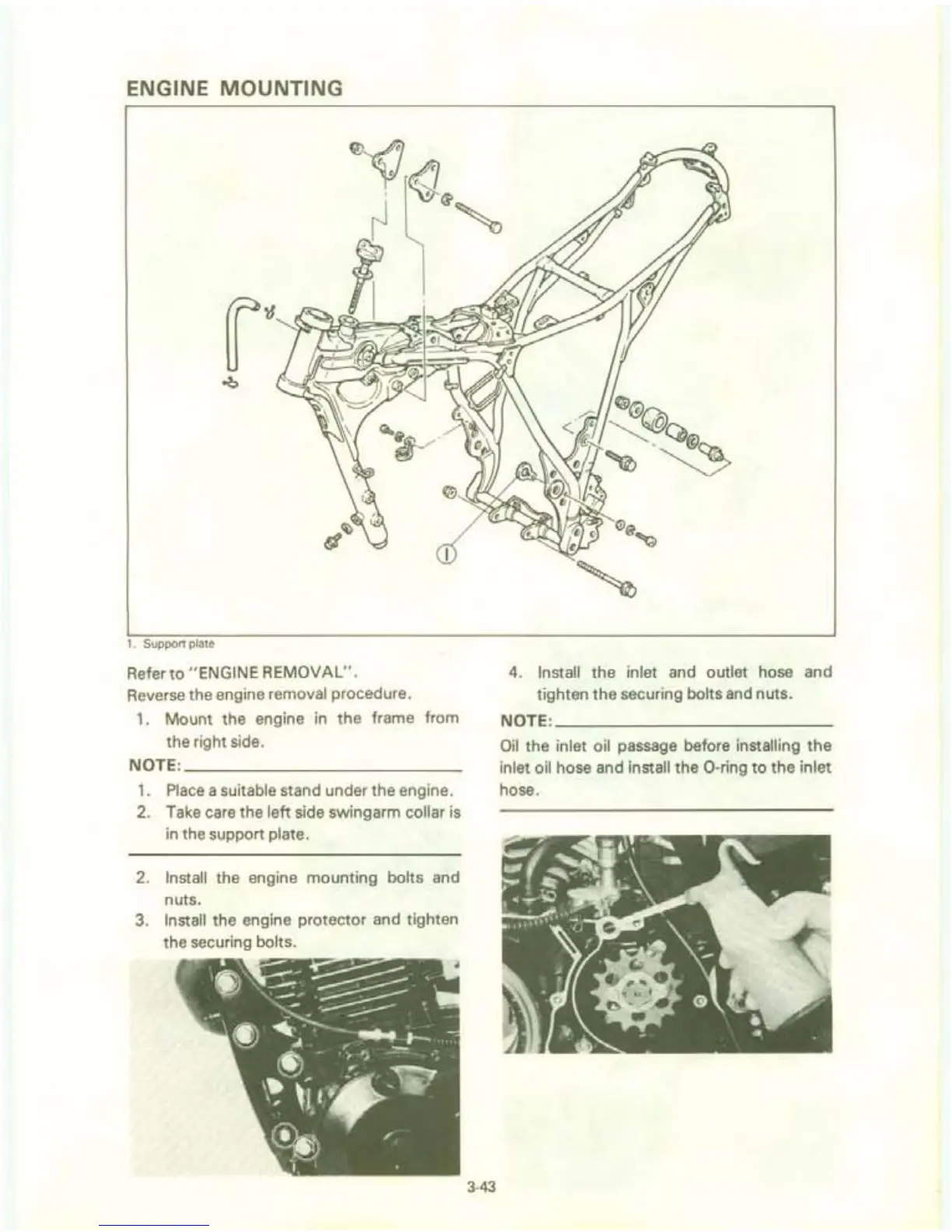

ENGINE MOUNTING
1. Support plate
Refer to "ENGINE REMOVAL".
Reverse the engine removal procedure.
1. Mount the engine in the frame from
the right side.
NOTE: ______________________ __
1. Place a suitable stand under the engine.
2. Take care the left side swingarm collar is
in the support plate.
2. Install the engine mounting bolts and
nuts.
3. Install the engine protector and tighten
the securing bolts.
3- 43
4. Install the inlet and outlet hose and
tighten the securing
bolts and nuts.
NOTE: ______________________ _
Oil the inlet oil passage before installing the
inlet oil hose and install the O-ring to the inlet
hose.
