3 ENGINE 3 ENGINE
EF494T TM 06/2011 edition
106

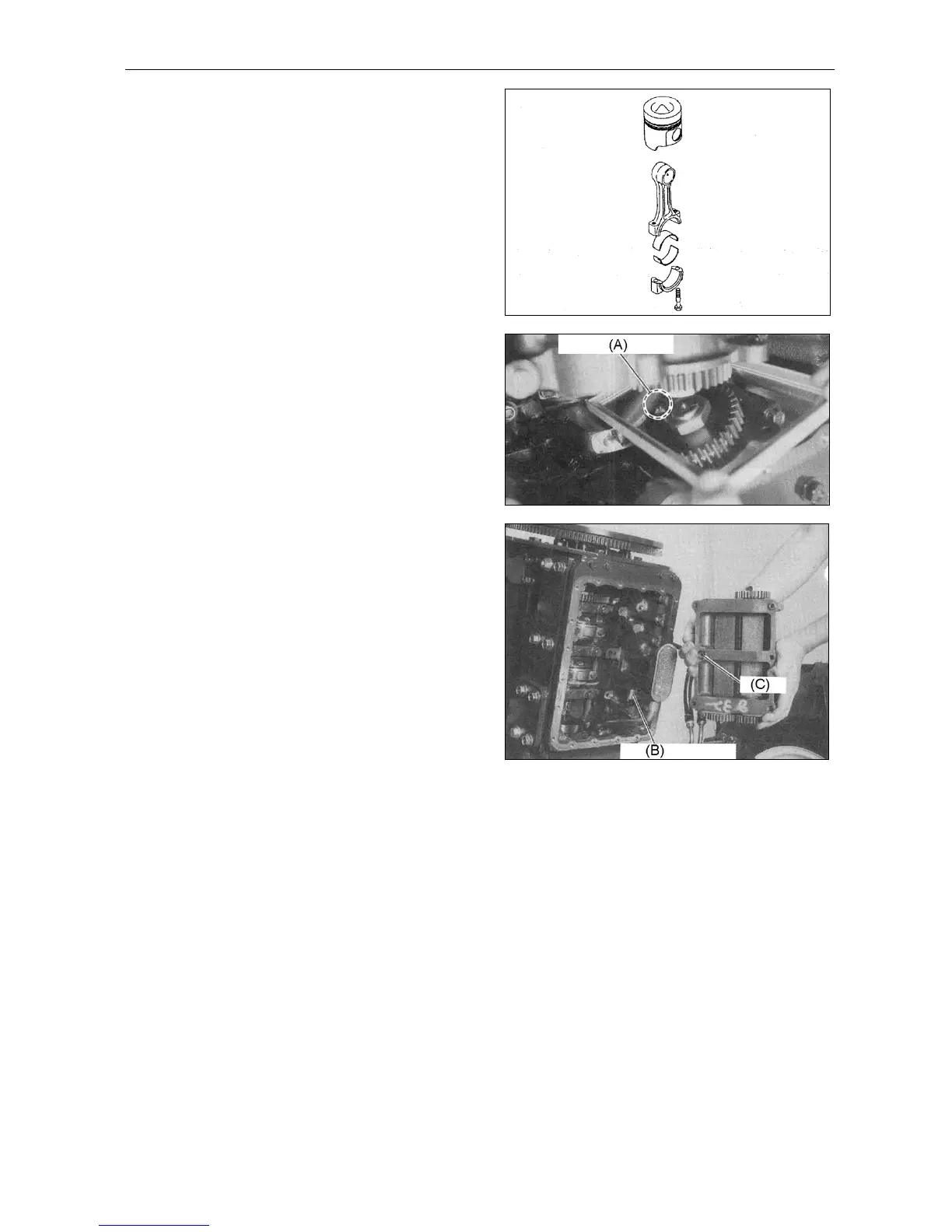

3.4.4 Piston
Disassembling
(1) Remove the cylinder head.
(2) Drain the engine oil.
(3) Remove the propeller shaft.
(4) Remove the oil pan.
Assembling
Use Three Bond 1212.
(5) Remove the dual-axis balancer assembly.
Note:
Mate the balancer gear A (hollow) with the
crankshaft balancer gear (mark A) (tooth).
Remove the connecting rod through the bottom
of the engine and pull the piston up.
(A) Balancer gear mark A
(B) Strainer mounting stay
(C) O-ring
