5 TRANSMISSION 5 TRANSMISSION
EF494T TM 06/2011 edition
143

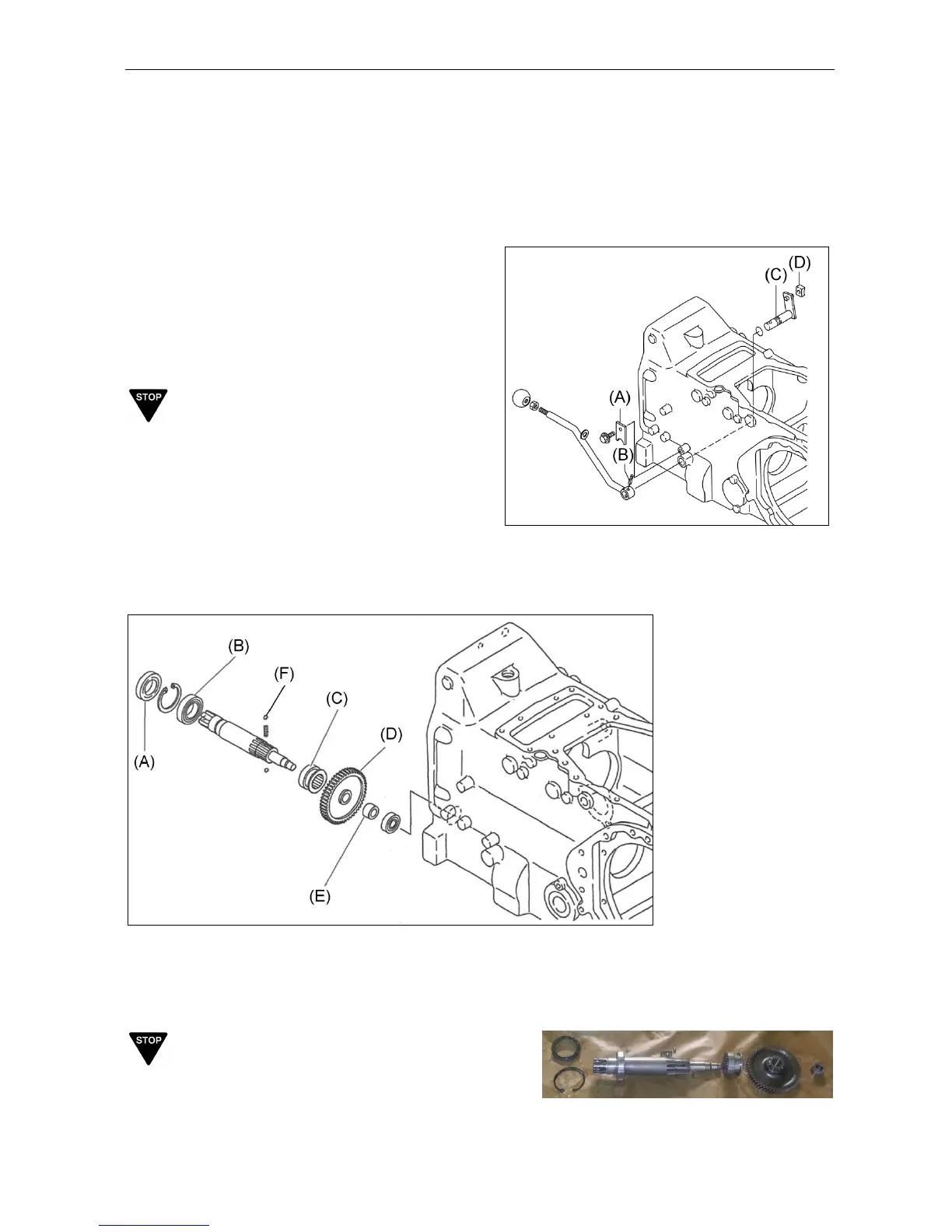

5.5.1 Disassembly
(1) Remove the hydraulic cylinder case. See
ā€œ2.6.1ā€.
(2) Wheel
Separate the transmission and clutch
housing.
(1) Remove the retainer plate and pull the front
shift arm outward about 5mm.
(A) Retainer plate
(B) Keep the spring pin as it is.
(C) Front shift arm
(D) Shift block
IMPORTANT
The shift block must enter the slider groove when
the unit is reassembled.
(2) Remove the oil seal and snap ring, then
remove the front drive shaft assembly. The
oil seal can be replaced from the outside.
(A) Oil seal TC356212
(24421-356212)
(B) Bearing 6007
(C) Slider
(D) Drive gear
(E) Collar 18 x 30 x 15
(Be sure to install)
(F) Steel ball
NOTE:
Collar 18 x 30 x 15 may fall down. Make sure it is
installed in position. To remove it, give a light
shock to it with a sliding hammer.
IMPORTANT
When pulling the slider (C) out from the shaft, be
careful not to lose the steel ball that fits in the
detent.
