Yanmar EF-494T - REMOVING THE ENGINE BONNET COVER

2 DISASSEMBLY OF COMPONENTS 2 DISASSEMBLY OF COMPONENTS
EF494T TM 06/2011 edition
42

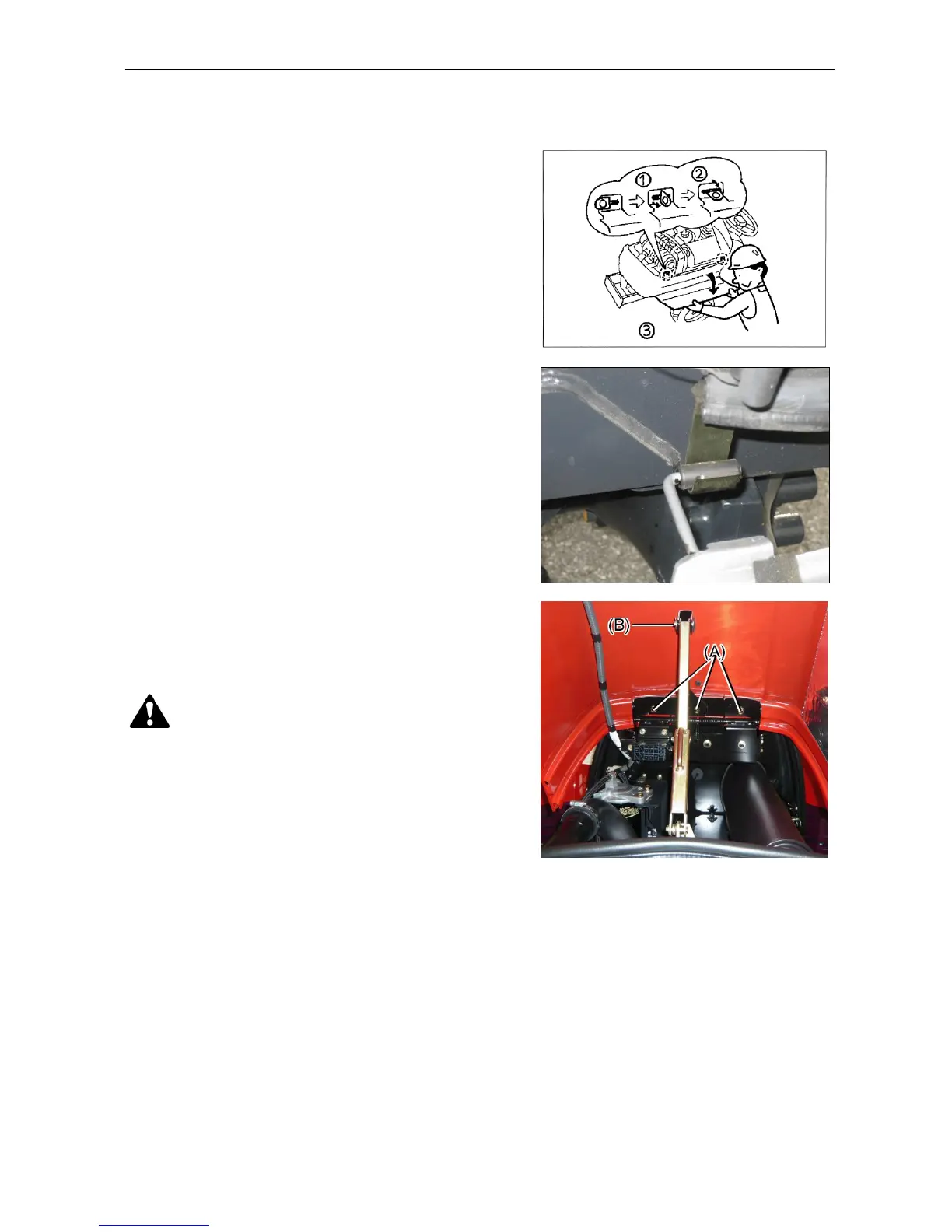

2.1 REMOVING THE ENGINE BONNET
COVER
2.1.1 Removing/mounting the side covers
<Removing>
(1) Open the bonnet.
(2) Put the locking knobs in the vertical position
(each forward and rear).
(3) Remove the side covers.
<Mounting>
(1) Clamp the cover lower hooks (x 2).
(2) Fix the cover top with the locking knob.
2.1.2 Removing the engine bonnet cover
Remove the 3 bolts (A) and the pin (B), and remove
the engine bonnet cover.
CAUTION
This work should be done by 2 people. If you work
alone, you may be injured.
