Yanmar EF-494T - TRANSMISSION (CLUTCH HOUSING CASE SIDE)

5 TRANSMISSION 5 TRANSMISSION
EF494T TM 06/2011 edition
134
5.4 TRANSMISSION (CLUTCH
HOUSING CASE SIDE)

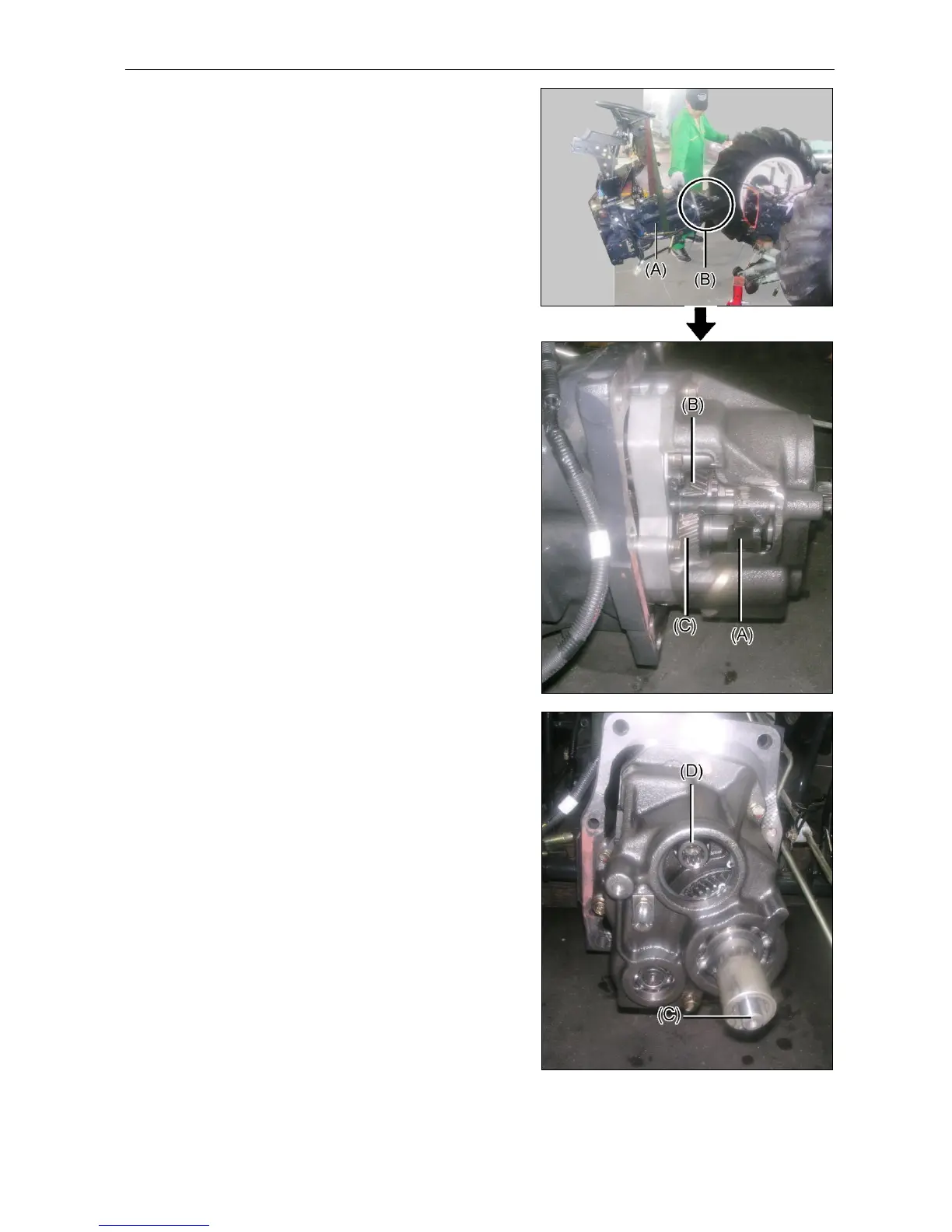

Each gear in the main shift module (A) and
reverse module (B) is contained in the
front of the transmission.
(1) Left side of the reverser section
(A) Reverser shift fork
(B) Reverser gear
(C) Reverse gear
(2) Rear of the reverser section
(D) Engine to PTO
(C) Reverser to Range shift
