4 CLUTCH 4 CLUTCH
EF494T TM 06/2011 edition
123
IMPORTANT

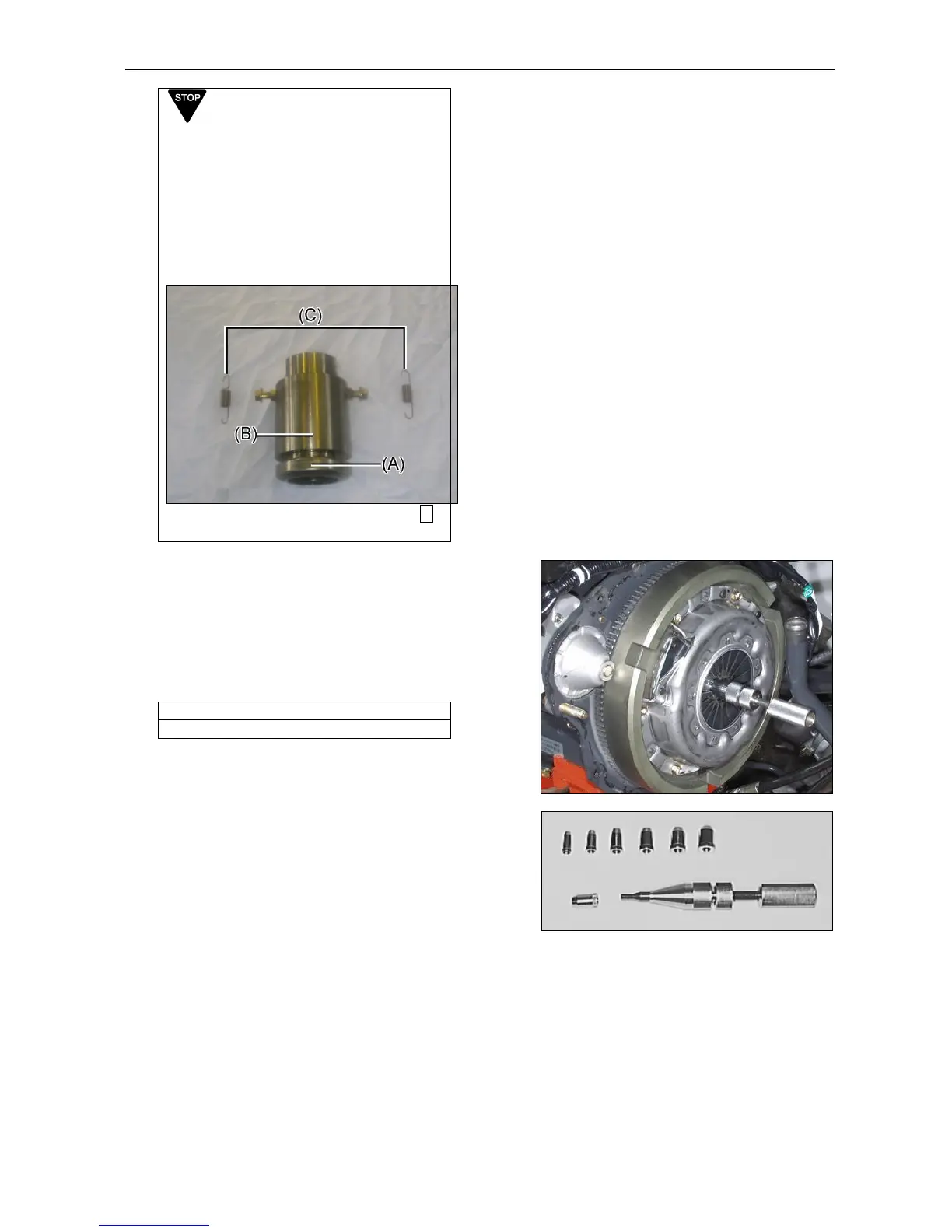

If the release bearing (A) has backlash
or does not rotate smoothly, replace the
release bearing.
(A) Release bearing
(B) Bearing sleeve
(C) Release
spring


4.2.2 Assembly
(1) Match the clutch disc and pressure plate to
the flywheel of the engine with the clutch
guide tool. Then, tighten the pressure plate
by the 9 bolts M8x16 with the specified
torque.
Tightening torque of pressure plate
23-29 N-m, 2.3-3.0 kgf-m, 16.6-21.7 lb-ft
