Yanmar EF-494T - Disassembly

8 POWER STEERING 8 POWER STEERING
EF494T TM 06/2011 edition
176

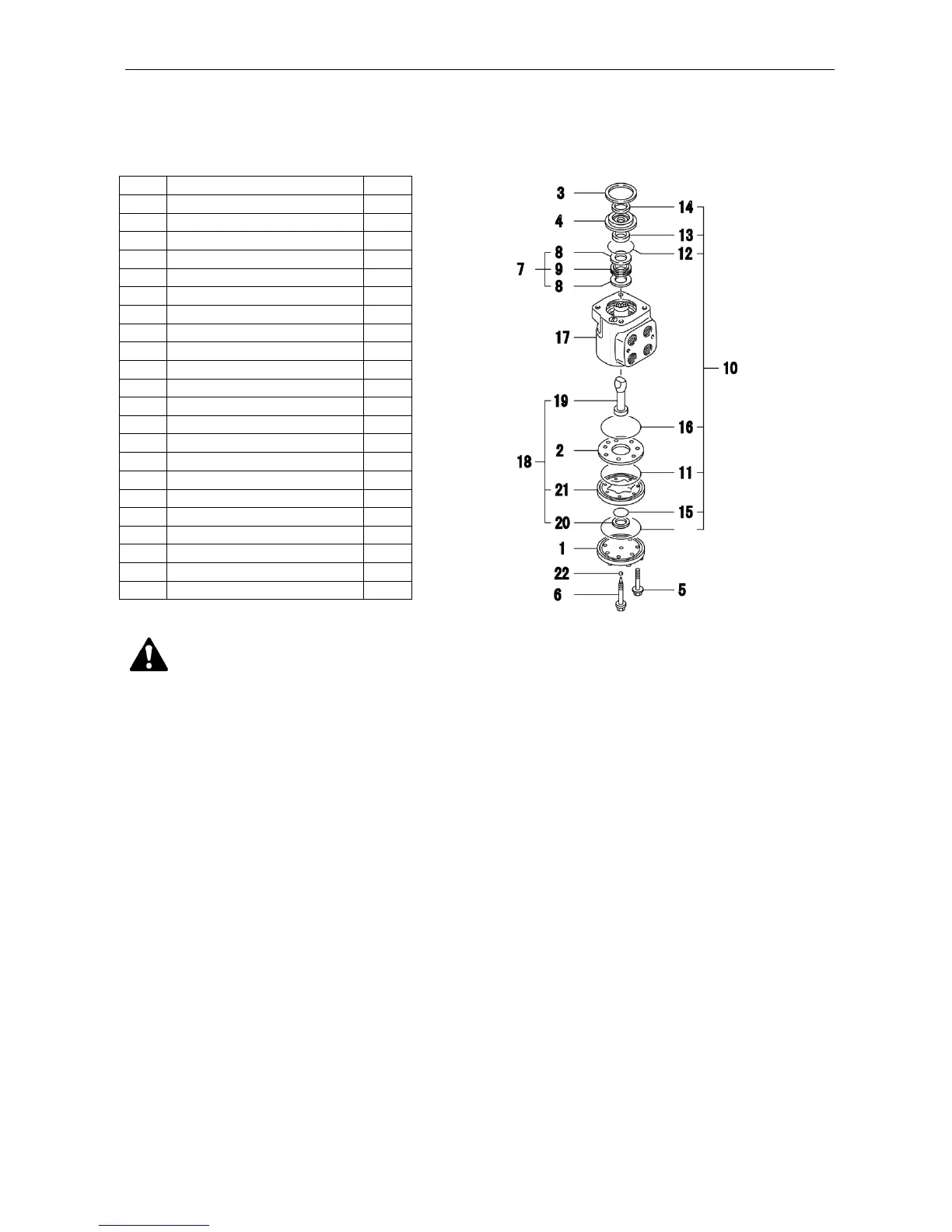

8.2.3 Disassembly
When the oil leak occurs, o-ring, packing, bush,
and the oil seal are replaced referring to this item.
No.
Parts name
Q’ty
16
1
Cap
2
Plate, Spacer
3
Ring
4
Bush
5
Screw
6
Screw
7
Bearing comp., Needle
8
Bearing
9
Thrush needle
10
Kit, Seal
11
O-ring
12
O-ring
13
Seal, Oil
14
Seal, Dust
15
Packing
16
O-ring
17
Valve assy.
18
Drive comp., Gerotor
19
Drive
20
Seal
21
Gerotor
22
Ball 7/32
DANGER
Do not disassemble the inside of Valve assembly
(17). If not, it may cause a serious accident.
