9.3 HYDRAULIC POWER TAKE OFF
The hydraulic pressure for single and double
action devices can be taken from the hydraulic
cylinder case.
The hydraulic pressure capacity is as follows:
Oil flow: 32.2 lit./min/2700 rpm (engine)
Pressure: 170-178 kg/sq.cm
9.3.1 For single action; pump trailer etc.
In the case of a single action cylinder, remove
the hydraulic output plug on cylinder case left
side and connect the hose from an implement.
<Operation>
(1) Set the position control lever at about 50
mm below the highest position.
(2) To hydraulic stop valve clockwise fully to
close.
(3) Remove the front cover (C) and plug (D) of
the hydraulic output. Connect hydraulic
hose of the implement.
NOTE:
Keep copper packing and plugs not to lose them.

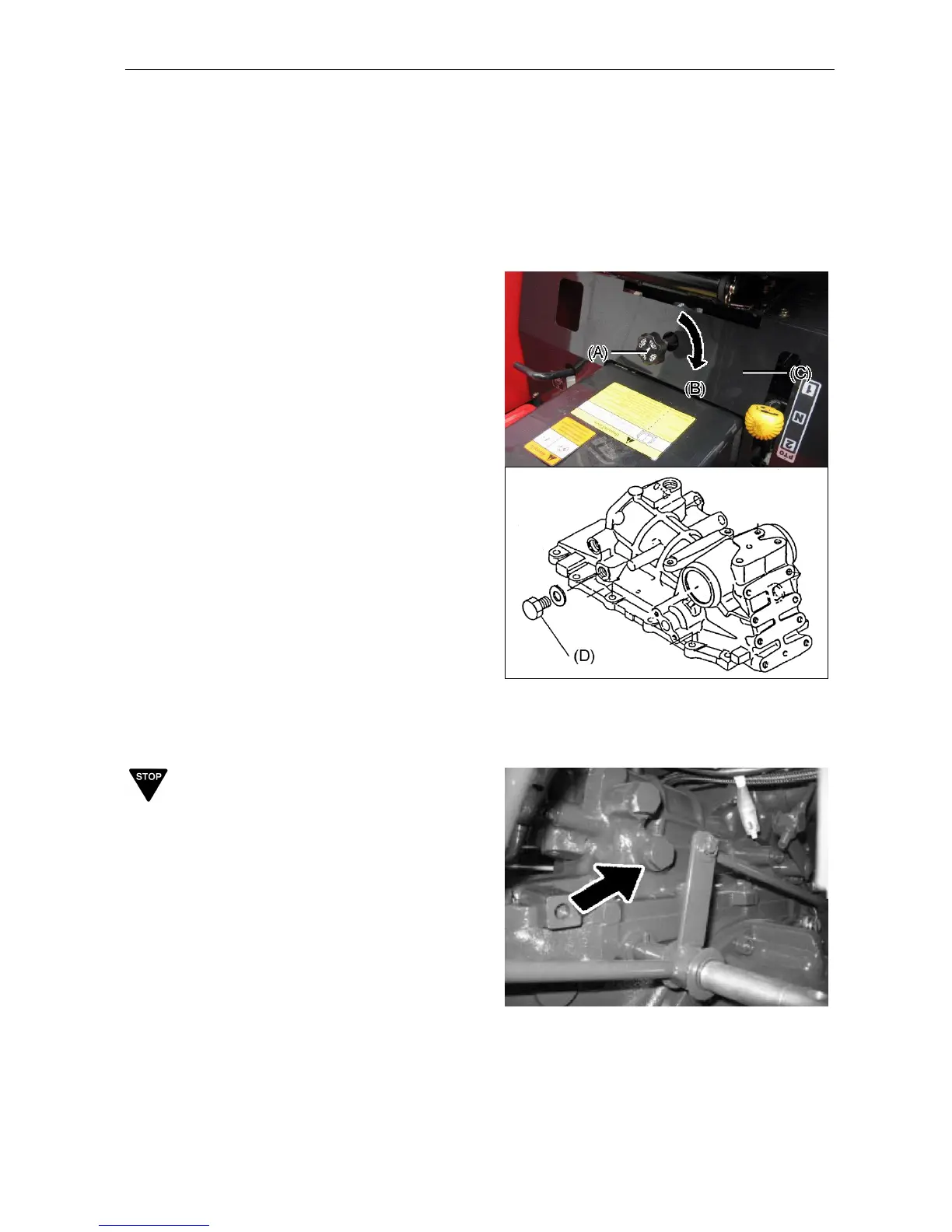

(A) Hydraulic stop valve
(B) Close
(C) Front cover
(D) Plug 3/4-16 UNF
IMPORTANT
Single action operation should be performed
using the tractor’s position lever.
