Yanmar EF-494T - Disassembly and Assembly; Disassembly

4 CLUTCH 4 CLUTCH
EF494T TM 06/2011 edition
120
4.2 DISASSEMBLY AND ASSEMBLY
4.2.1 Disassembly

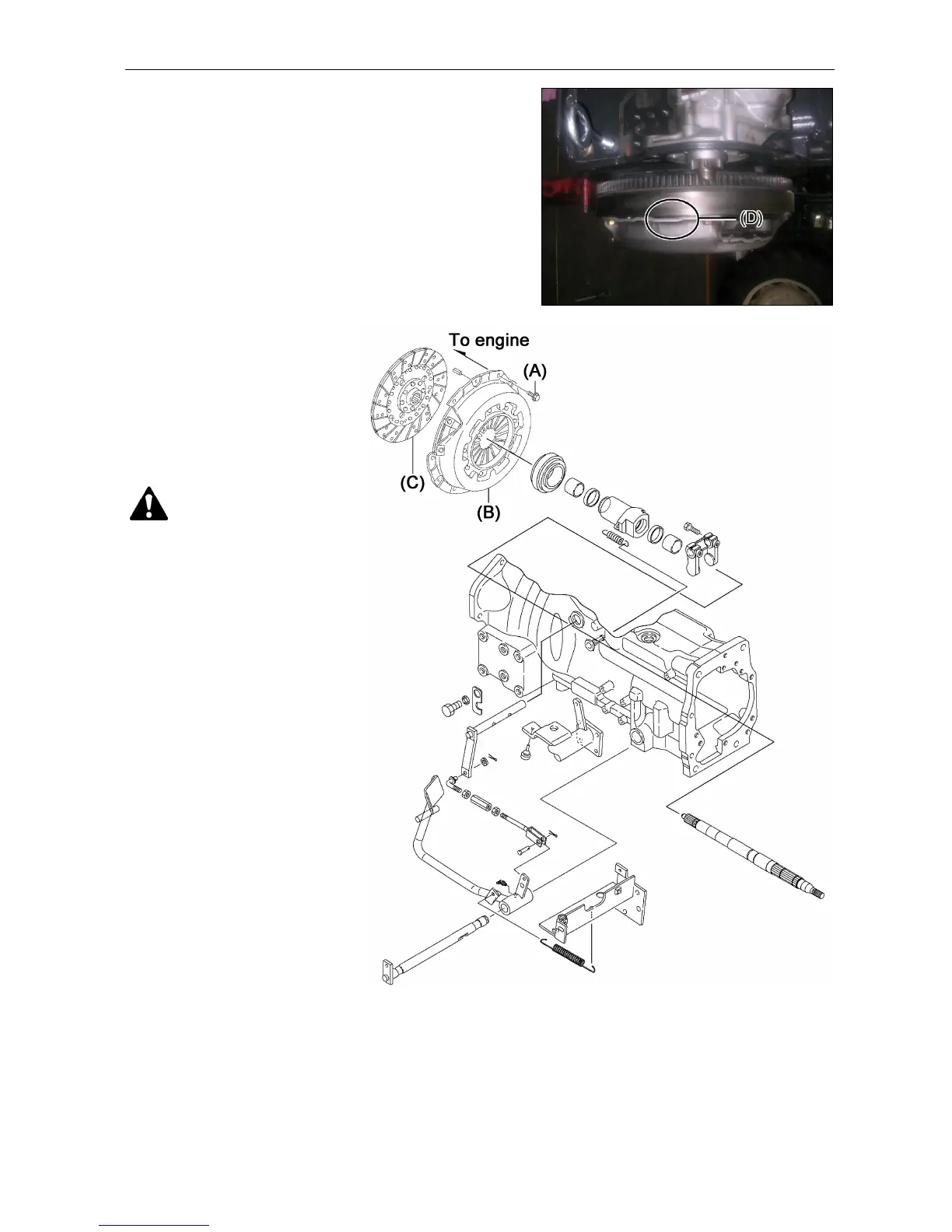

(1) As for disassembly of the clutch housing,
refer to 2.5.
(2) Remove the nine
M8x16 bolts (A).
(3) Remove the pressure
plate (B) together with
the clutch disc (C) from
section D using a
flathead screwdriver.
CAUTION
 Be careful not to drop the
clutch disc (C).
 Be careful not to get oil or
grease on the clutch disc
(C).
