5 TRANSMISSION 5 TRANSMISSION
EF494T TM 06/2011 edition
136

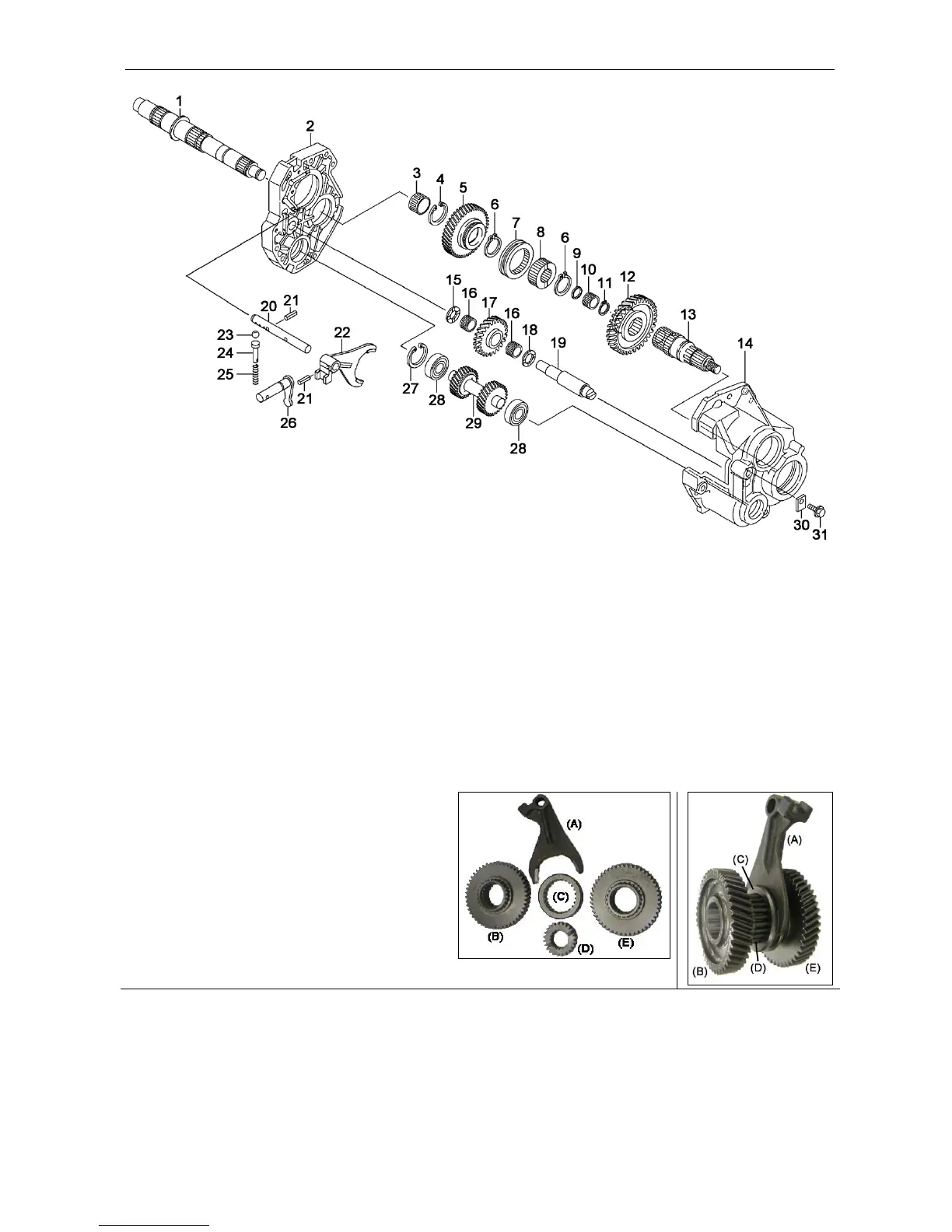

(1) Driven shaft
(2) Center plate
(3) Needle bearing
(4) Snap ring 35H
(5) Drive gear 44
(6) Snap ring 30
(7) Shifter
(8) Spline collar
(9) Collar 20x45x3.5
(10) Needle 20x26x17
(11) Snap ring 20-S
(12) Driven gear 48L
(13) Connecting shaft
(14) Bearing retainer
(15) Thrust washer 17x32
(16) Needle 202615
(17) Idle gear
(18) Thrust washer 20x32x2
(19) Idle shaft
(20) Reverser fork shaft
(21) Spring pin 6x25
(22) Reverser shift fork
(23) Steel ball 5/16
(24) Flat head pin 4x35
(25) Spring
(26) Reverser shift arm
(27) Snap ring 62(H)
(28) Ball bearing 6204
(29) Gear
(30) Plate
(31) Bolt M8x16
(4) Reverser gear
(A) Reverser shift fork
(B) Drive gear 44
(C) Shifter
(D) Spline collar
(E) Driven gear 48L
