Yanmar EF-494T - LOCATION OF ELECTRICAL PARTS

229
(1) Slow blow fuse 60A
(2) Horn
(3) Battery earth cable
(4) Generator
(5) Thermometer
Start relay
Solenoid relay
(7) FO pump
(8) Oil pressure switch
(9) Timer, 1 sec
(10) Battery
(11) Battery cable (+)
(12) Harness (Head lamp)
(13) Harness A
(14) Meter cable
(15) Head lamp relay (x2)
(16) Instrument panel
(17) Starting motor
(18) Combination switch
(19) Kew switch
(20) Transmission neutral switch
(21) Harness flasher
(22) Flasher lamp
(23) Tail lamp
(24) Fuel gauge sensor
(25) PTO neutral switch
(26) Flasher relay
(6)

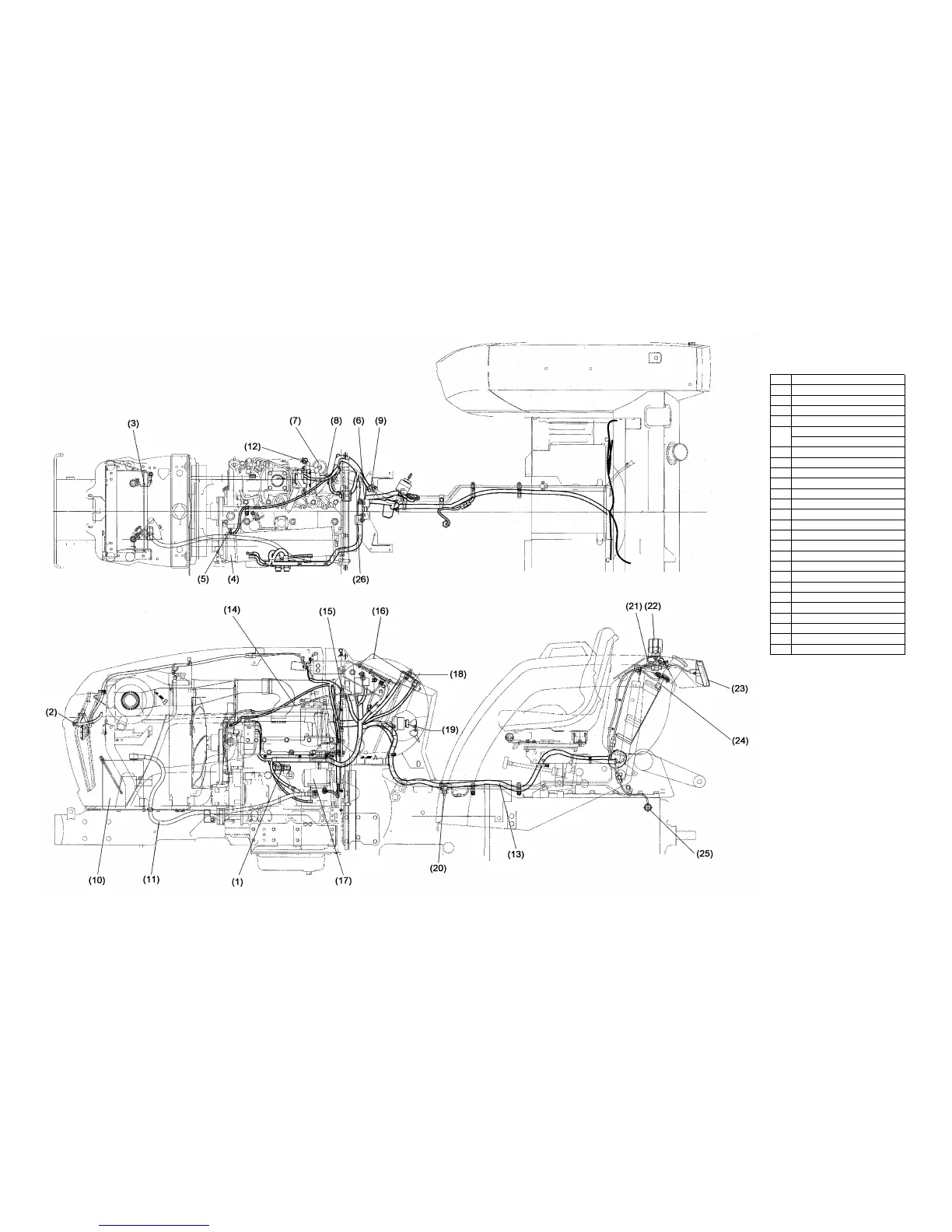

11.2.2 LOCATION OF ELECTRICAL PARTS
