1 PERIODICAL INSPECTION 1 PERIODICAL INSPECTION
EF494T TM 06/2011 edition
35

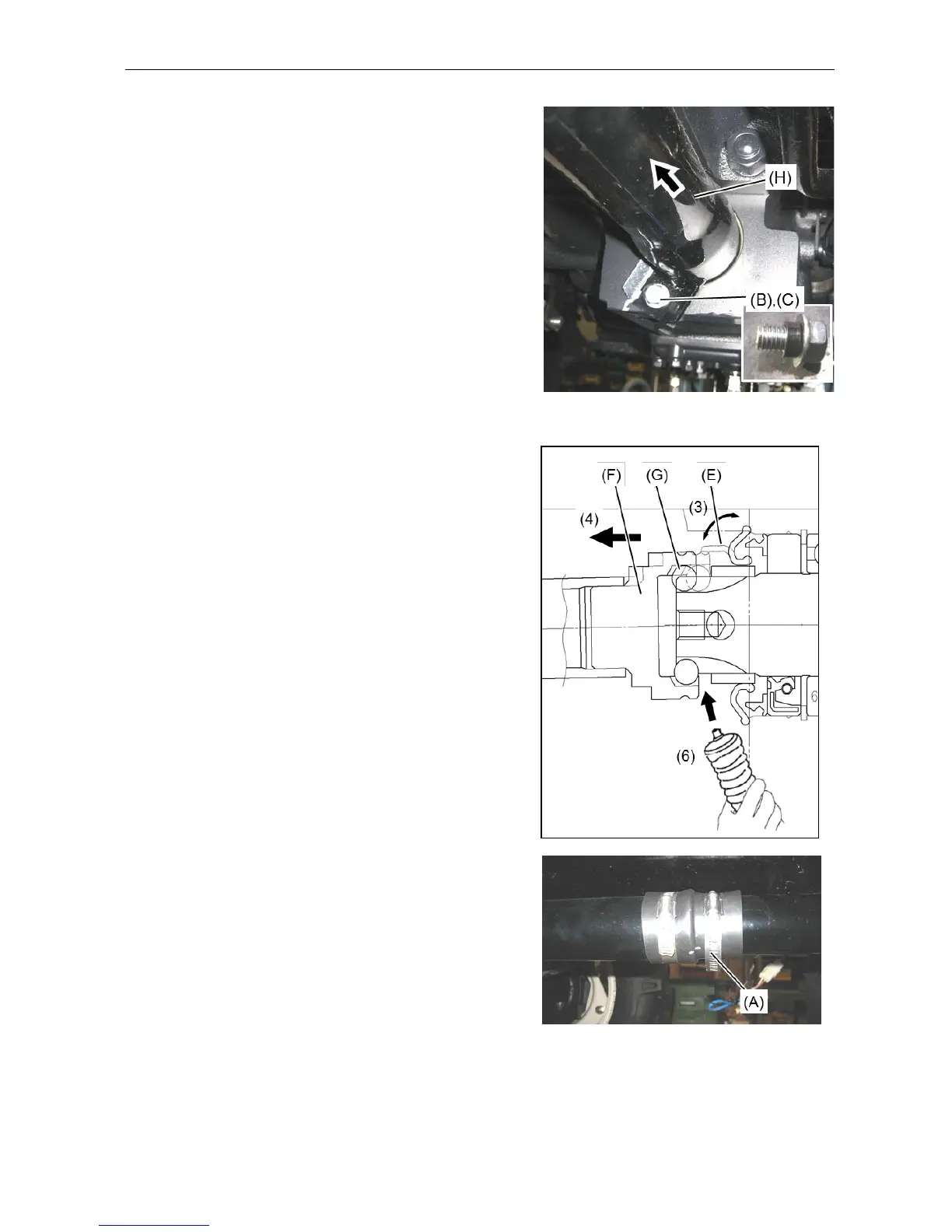

2. Rear end
(1) Remove the bolt (B) and collar (C) from rear
shaft cover (H).
(2) Slide the rear shaft cover (H) backward as the
right picture shows.
(3) Turn over the rubber boots (E) as the right
illustration shows.
(4) Slide the coupling (F) frontward as the right
illustration shows.
※Be careful not to lose ball (G).
(5) Apply enough multipurpose Grease to six balls
(G).
(6) Turn back rubber boots (E) to their original
position.
(7) Fix the rear shaft cover (H) with bolt (B) and
collar (C).
※ Be sure to install the collar (C). If not, the rear
shaft cover may be broken in a short time.
(8) Tighten the band (A).
