2 DISASSEMBLY OF COMPONENTS 2 DISASSEMBLY OF COMPONENTS
EF494T TM 06/2011 edition

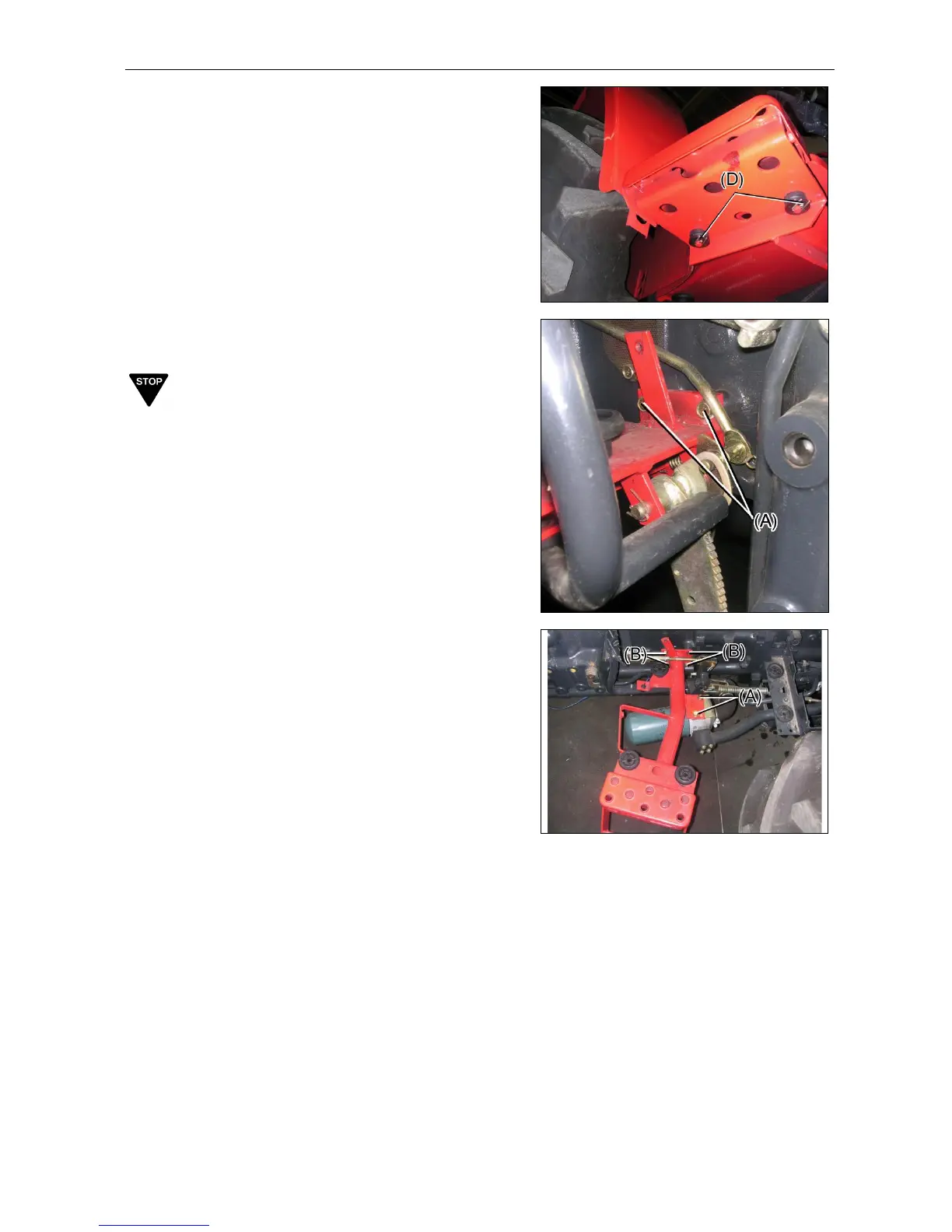

(3) Remove the 4 mounting pins (D), and remove
the right floor (C).
Remove the left floor following the same
sequence of right side floor.
(4) Remove the three M8x20 bolts (A), and
remove the right floor stay.
IMPORTANT
The entire parking brake assembly can be removed.
Remember the relative positions of the various
parts.
(5) Remove the two M8x20 bolts (A) that fix oil
filter, the four M8x20 bolts (B), and then
remove left floor stay.
